Charlynn Hydraulic Pump Motor 109-1238-006 Aftermarket Geroler Motor Sae B Mounting Flange 31.75mm Spline Shaft 14t
Price:
Start from 500 usd
MOQ:
1 Sets
Delivery Time:
15 - 45 work days
Brand:
HANJIU
Product Description

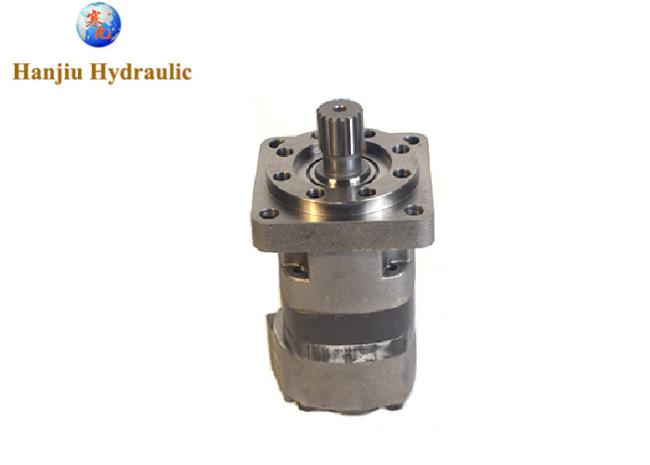

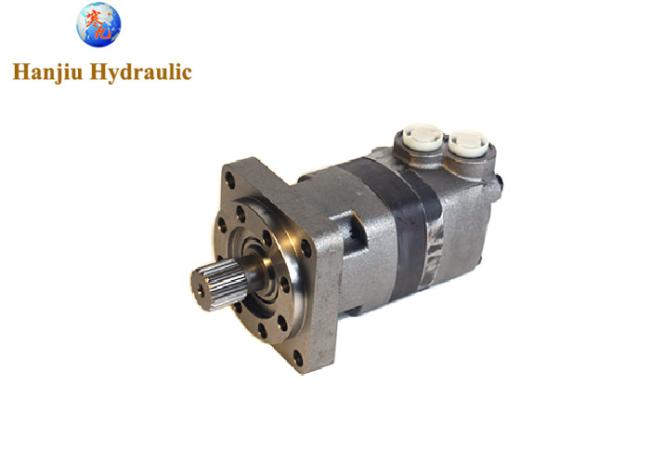

charlynn hydraulic pump motor 109-1238-006 aftermarket geroler motor SAE B mounting flange 31.75mm spline shaft 14T
Hanjiu technology supply the replacement charlynn motor BMK4 series motor
same specification and performance with Charlynn 4000 series disc geroler motor
the type code is 109-1238-006
eaton 109-1238
OEM Charlynn 109-1238-006
Product details:
| Application: Other: Mowing, Snow Removal, Sprayer, Trencher, Wood Products |
| Brake type: Hydraulic |
| flow options: ..5625-18 UNF-2B SAE O-RING PORT WITH SHUTTLE |
| Displacement: 492.6 cubic centimetre per revolution |
| Geroler options: Standard |
| Description: Low-Speed Gerotor/Geroler |
| Identification: None |
| Intermittent pressure: 170 bar |
| Low pressure relief: None |
| Maximum speed: 191 revolutions per minute |
| Model Code: M04099AB03AA01000000001000000F |
| Mounting Type: Standard, 4 Bolt; 101.60 [4.000] Pilot Dia. 14.7 [.58] Slots On 127.00 [5.000] Dia. Bolt Circle. (SAE B) |
| Output shaft type: 31.75 [1.250] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE, 38.1 [1.50] MINIMUM FULL SPLINE LENGTH WITH .375-16UNC-2B THREAD |
| Paint: Primer Low Gloss Black |
| Port type: .875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTS |
| Pressure flow option: None |
| Product height: 4.72 |
| Product height uom: inch |
| Product length: 12.87 |
| Product length uom: inch |
| Product material: Cast Iron |
| Product trade name: 4000 Series |
| Product weight: 48.00 |
| Product weight uom: pound |
| Product width: 4.72 |
| Product width uom: inch |
| Recommended system working temperature: -34°C to 82°C |
| Seal options: Standard |
| Shaft options: None |
| Special assembly instructions: None |
| Special features hardware: None |
| Speed sensor: No |
| Sub brand: HANJIU |
| Torque: 945 newton metre |
| Two speed ratio: None |
| Valve options: None |
| Viscosity recommendation: 70 Saybold universal second |
Here are examples we make 109- series motors , motor models contact us to get
| 109-1001-006 | 109-1100-006 | 109-1155-006 | 109-1212-006 | 109-1278-006 |
| 109-1002-006 | 109-1101-006 | 109-1156-006 | 109-1215-006 | 109-1280-006 |
| 109-1003-006 | 109-1102-006 | 109-1157-006 | 109-1220-006 | 109-1286-006 |
| 109-1006-006 | 109-1103-006 | 109-1158-006 | 109-1224-006 | 109-1287-006 |
| 109-1008-006 | 109-1104-006 | 109-1159-006 | 109-1225-006 | 109-1293-006 |
| 109-1011-006 | 109-1105-006 | 109-1160-006 | 109-1227-006 | 109-1295-006 |
| 109-1012-006 | 109-1106-006 | 109-1173-006 | 109-1231-006 | 109-1296-006 |
| 109-1013-006 | 109-1107-006 | 109-1184-006 | 109-1233-006 | 109-1304-006 |
| 109-1052-006 | 109-1108-006 | 109-1185-006 | 109-1234-006 | 109-1305-006 |
| 109-1053-006 | 109-1109-006 | 109-1189-006 | 109-1236-006 | 109-1309-006 |
| 109-1054-006 | 109-1110-006 | 109-1190-006 | 109-1238-006 | 109-1311-006 |
| 109-1055-006 | 109-1111-006 | 109-1191-006 | 109-1245-006 | 109-1314-006 |
| 109-1056-006 | 109-1112-006 | 109-1192-006 | 109-1246-006 | 109-1316-006 |
| 109-1057-006 | 109-1113-006 | 109-1193-006 | 109-1247-006 | 109-1317-006 |
| 109-1059-006 | 109-1114-006 | 109-1194-006 | 109-1248-006 | 109-1318-006 |
| 109-1061-006 | 109-1115-006 | 109-1195-006 | 109-1252-006 | 109-1337-006 |
| 109-1062-006 | 109-1116-006 | 109-1196-006 | 109-1254-006 | 109-1339-006 |
| 109-1063-006 | 109-1117-006 | 109-1203-006 | 109-1260-006 | 109-1363-006 |
| 109-1064-006 | 109-1118-006 | 109-1204-006 | 109-1263-006 | 109-1450-006 |
| 109-1065-006 | 109-1119-006 | 109-1207-006 | 109-1264-006 | 109-1453-006 |
| 109-1087-006 | 109-1120-006 | 109-1208-006 | 109-1267-006 | 109-1543-006 |
| 109-1094-006 | 109-1154-006 | 109-1211-006 | 109-1269-006 | 109-1092-006 |
From China, HANJIU technology design, develop and manufacture hydraulic orbital motors. Shipped to all over the world, customers use our hydraulic motors directly as compatible motors for Danfoss, M+S, Eaton, Parker, White, Dana Brevini. Obtain the maximum benefit with the minimum cost, and you have no risk in cooperating with us. If you are hydraulic motor importer, wholesaler, OEM factory, contact us to discuss cooperation and get big customer discount.
