Wheel Loader Traveling Motor Hydraulic Orbital Motor Wheel Mounted 315cc

Price Negotiable

Price: Contact the selle to get the best offer

MOQ: 100 Unit

Delivery Time: 45-55 work days

Brand: HANJIU CHINA

Product Description

Welcome!
Hydraulic Motor manufacturer from China specializes in high performance CW and CCW rotation Hydraulic Wheel Motor for various applications
For example, engineering, construction, agriculture, forestry
Partners include OEM, hydraulic importers, hydraulic distributors

Please see product introduction below:

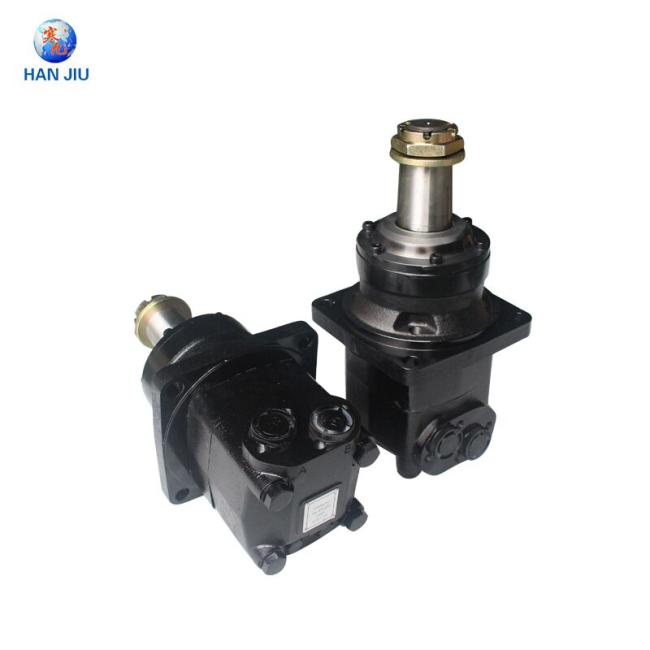

Wheel loader traveling motor, Hydraulic orbital motor wheel mounted, 315cc

Quick review:

This is an BMV315 Orbital Motor with wheel mounted flange apply to Wheel Loader, it can be clockwise rotate and counter-clockwise rotate, excellent for Whell Loader usage.

Technical information
BMV-315-W-T-G

"Tapered shaft Ø60 mm

Wheel flange 4 bolt
Working port, G 1, G 1/4

Main Specifications:

Type		BMV 315	BMV 400	BMV 500	BMV 630	BMV 800	BMV 1000
Geometric displacement (cm3 /rev.)		333	419	518	666	801	990
Max. speed (rpm)	cont.	510	500	400	320	250	200
Max. speed (rpm)	int.	630	600	480	380	300	240
Max. torque (N·m)	cont.	920	1180	1460	1660	1880	2015
	int.	1110	1410	1760	1940	2110	2280
	peak	1290	1640	2050	2210	2470	2400
Max. output (kW)	cont.	38	47	47	40	33	28.6
Max. output (kW)	int.	46	56	56	56	44	40
Max. pressure drop (MPa)	cont.	20	20	20	18	16	14
	int.	24	24	24	21	18	16
	peak	28	28	28	24	21	18
Max. flow (L/min)	cont.	160	200	200	200	200	200
Max. flow (L/min)	int.	200	240	240	240	240	240
Weight (kg)		31.8	32.6	33.5	34.9	36.5	38.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

About manufacturer:

HANJIU is a hydraulic motor manufacturing company from China. More than a thousand types of hydraulic motors are widely used in automated hydraulic systems in engineering, construction, agriculture, forestry, fishery, ports, docks, mines, etc. For example, construction equipment manufacturers in Germany, tractor manufacturers in Turkey, mining rig manufacturers in North America, and dealers from Danfoos, Eaton, Parker, and White are all good partners for us. If you are an equipment manufacturer or hydraulic distributor, please contact us to discuss your needs and learn how we can better realize your needs.

Please check measurement of this motor:
