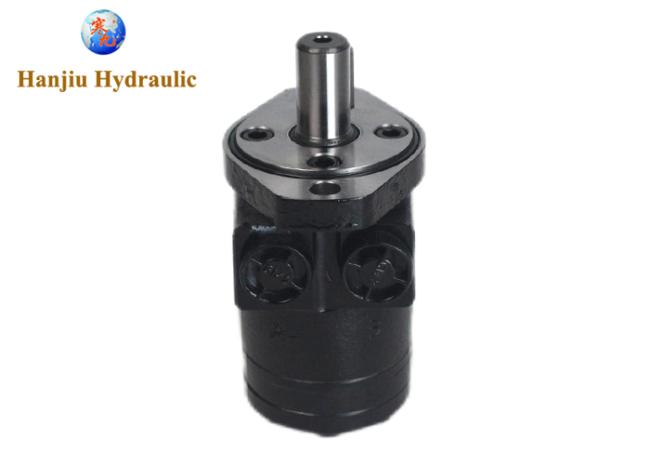

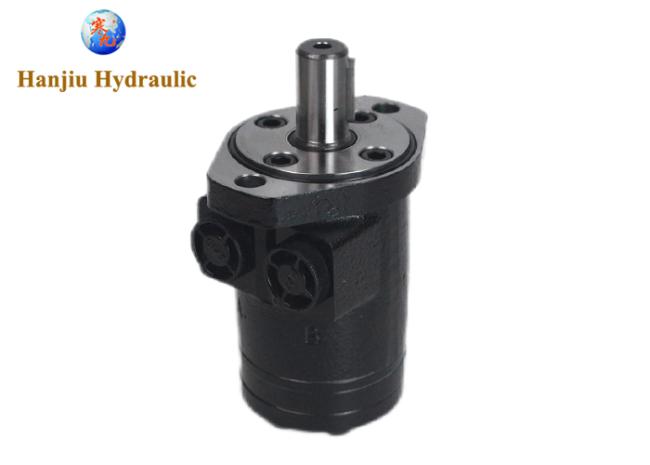

101-1195-009 H series Eaton Char-lynn Gerotor Hydraulic Motor replacement BMPH-100

Price Negotiable

Price: 46 usd/pc

MOQ: 100 Pieces

Delivery Time: 10 - 15 work days

Brand: HANJIU

Product Description

101-1195-009 H series Eaton Char-lynn Gerotor Hydraulic Motor replacement BMPH-100

Quick review:

Model number: BMPH-100
Displacement: 100 ml/r
Shaft, Key shaft
Rotation, CW
Features, replace Eaton Char-lynn 101-1195-009

Speed, torque, flow, pressure, weight informations:

Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMP BMPH BMPW 36	BMP BMPH BMPW 50	BMP BMPH BMPW 80	BMP BMPH BMPW 100	BMP BMPH BMPW 125	BMP BMPH BMPW 160	BMP BMPH BMPW 200	BMP BMPH BMPW 250	BMP BMPH BMPW 315	BMP BMPH BMPW 400	BMP BMPH BMPW 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

Technical data for BMP with 31.75 and 32 shaftt:

Type		BMP BMPH 36	BMP BMPH 50	BMP BMPH 80	BMP BMPH 100	BMP BMPH 125	BMP BMPH 160	BMP BMPH 200	BMP BMPH 250	BMP BMPH 315	BMP BMPH 400	BMP BMPH 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	460	475	490	430
	int.	76	128	186	227	290	370	440	570	555	580	560
	peak	96	148	218	264	360	434	540	670	840	840	780
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	6
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	7
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	14	12	9.5	7
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	14	11.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	13
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

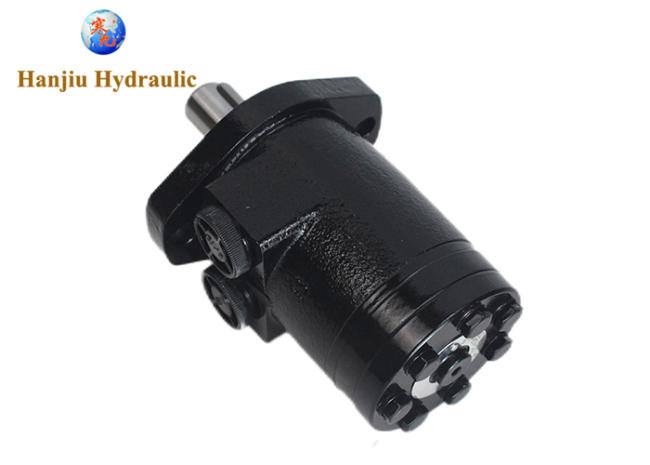

Photo: Special Flange

Benefits:

• High efficiency

• Powerful compact

package

• Design flexibility

• Extended leak-free

performance

Applications:

• Agricultural augers,

harvesters, seeders

• Car wash brushes

• Food processing

• Railroad maintenance

equipment

• Machine tools

• Conveyors

• Industrial sweepers and

floor polishers

• Saw mill works

• Turf equipment

• Concrete and asphalt

equipment

• Skid steer attachments

More Eaton Char-lynn replacement motor we have:

J (129-)
H (101-)
S (103-)
T (158-)
W (162-)
2000 (104-, 105-, 106-,)
4000 (109-, 110-,)
6000 (112-, 113-, 114-)
10000 ( 119-)

About HANJIU Technology:

Precision manufacturing, providing solutions for hydraulic systems. Grow together with customers, always provide innovation in products and services, always maintain our quality standards, and let our professional team meet your needs. Brand new wholeheartedly provide you with quality service. Our goal is to ensure that our customers receive fast, efficient and reliable service. Be a benchmark enterprise in the industry and lead the industry development.

HANJIU manufactures economical hydraulic motors, hydraulic directional valves and Orbitrol steering for all over the world.

We specialize in Eaaton Char-lynn replacement/alternative/compatible motors
We specialize in Saauer Danfooss replacement/alternative/compatible motors
We specialize in Parker replacement/alternative/compatible motors
We specialize in Brevini replacement/alternative/compatible Motors
We are good at M+S replacement/alternative/compatible motor
