Integral Brake Hydraulic Orbit Motor BMRWN-BK3B-310-T1-G-G Wheel Drive Motor
Price:
Negotiable
MOQ:
20 Pieces
Delivery Time:
25-30 work days
Brand:
HANJIU
Product Description

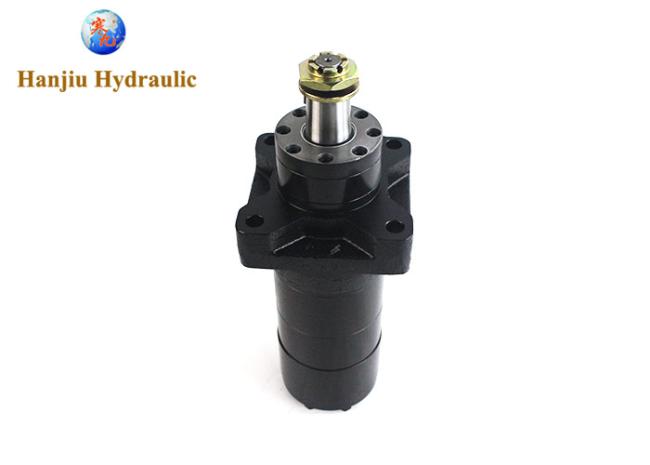

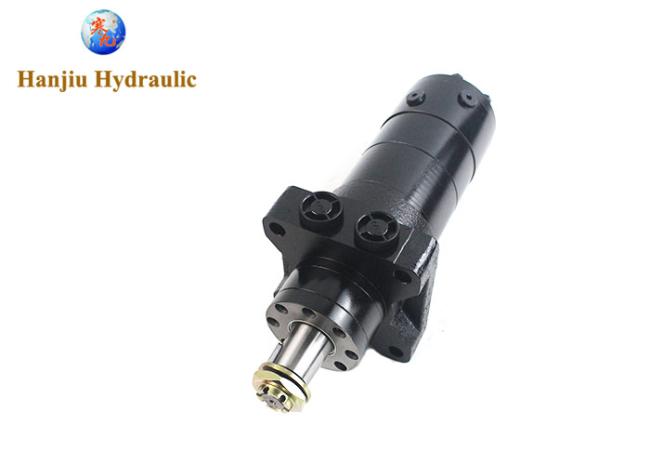

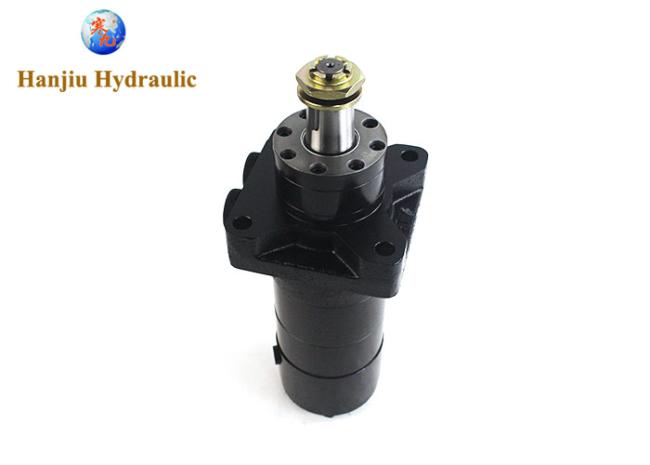

Integral Brake Hydraulic Orbit Motor BMRWN-BK3B-310-T1-G-G wheel drive motor
Specifications:
- BMRWN-BK3B-310-T1-G-G
- displacement = 311cc
- wheel flange
- tapered SHAFT
- G1/2 Manifold Mount, 4-M8, G1/4 port threads and drain ports
- brake release port G1/4
Specifications:
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR Bk3 36 |
BMR Bk3 50 |
BMR Bk01 80 |
BMR Bk3 100 |
BMR Bk01 125 |
BMR Bk3 160 |
BMR Bk3 200 |
BMR Bk3 250 |
BMR Bk3 315 |
BMR Bk3 375 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
APPLICATION
Conveyors
Feeding mechanism of robots and manipulators
Metal working machines
Textile machines
Food industries
Agriculture machines
Mining machinery etc.
