Hydraulic Steering Unit 160cc Open Center For 4x4 Off-Road Vehicles


* We carry the largest selection of Hydraulic Steering Units, Whether it's Open Center or Close Center or Load Sensing Reaction, Safety valve, Shock Valves, Suction Valves along with Steering Columns (Shafts) to suit any 4x4 Off-Road Vehicle out there.

 * All our products come with a 1 Year Warranty.

* Replacements for Sauer-, Eaton, Parker, PSC Motorsports, Char-Lynn, Trail-Gear & Saginaw Power Steering Pumps.



Product Indroduction:

* 160cc displacement

* Open center oil flow

* Non-load reaction or reaction or Load Reaction

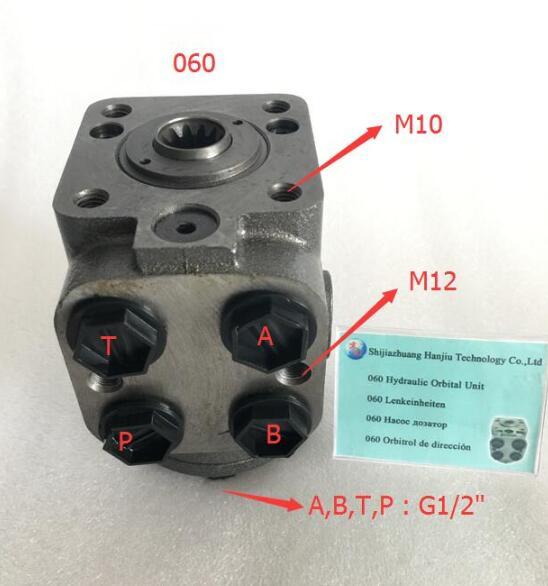

* Four ports with G1/2"- O-ring

* Manual steering check valve

* 1 x Safety valve & 2 x shock valves for emergency use

* Main specification data
* Max. System pressure --------16MPa
* Max. Back pressure -----------2.1MPa
* Input torque--------------------1.7~2.5Nm
* Max. System operating temperature--------93º C
* Recommended oil filtration--------ISO 19/16

​

Please do not hesitate to contact us for further information, inquiries or orders.
Thank you for choosing 'Hanjiu' Hydraulics.
