Ospc125 Ospc160 Hydraulic Steering Units Orbitrol Controls Open Center For Harvesters Solutions
Price:
Negotiable
MOQ:
50 Sets
Delivery Time:
10-15 work days
Brand:
HANJIU
Product Description

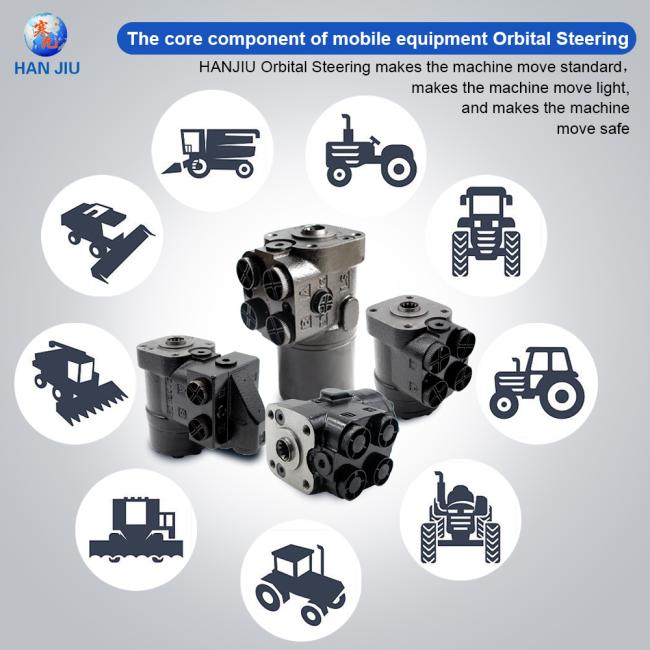

OSPC125, OSPC160 Hydraulic steering units orbitrol controls open center for hydraulic harvesters solutions

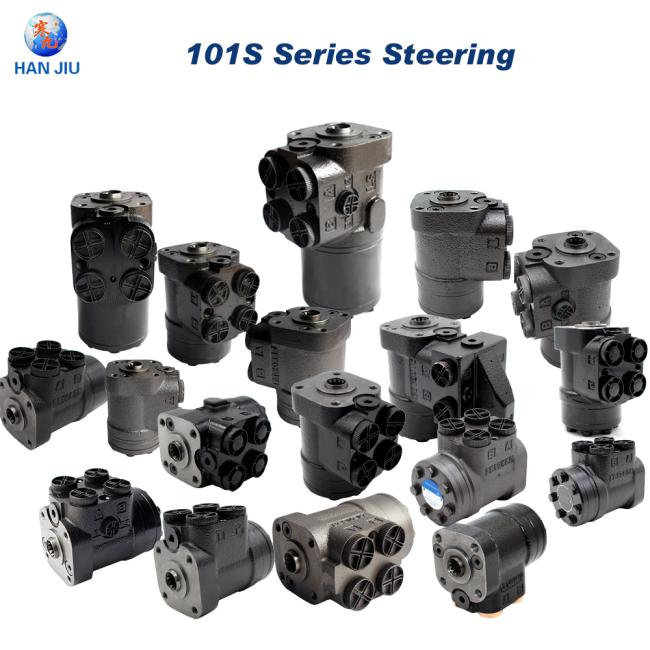

Hanjiu hydraulic supply ospc125,ospc160,ospc100 series hydraulic steering units,
used for agricultural machines, harvester/tractors...
excellent quality, fast delivery, fit for agricultural machinery manufacturers,
bring the equipment with new performance..
We have a young team, but we also master the latest technology in the hydraulic field.
The products we develop are more flexible and more adaptable. It can meet the new requirements of your machinery
specification:
| Parameters | Series 101S-*-***-**-* |
||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 17.5 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16,17.5 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22,23.5 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
