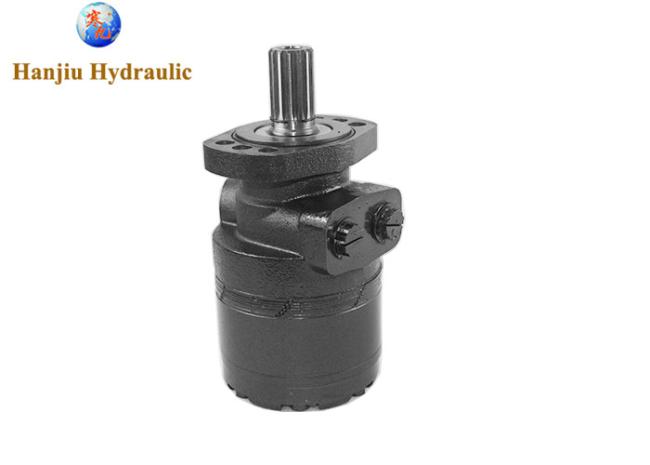

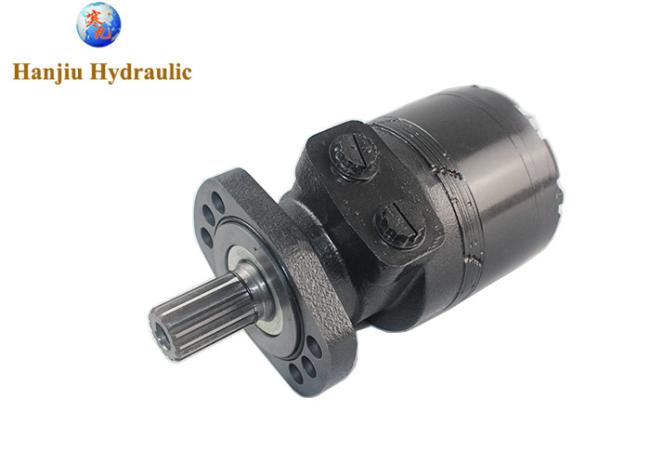

Tg0540 Parker Torqmotor Gerotor Hydraulic Motor For Hydraulic Post Driver Drill Parts
TG0540 Parker Torqmotor For Hydraulic Post Driver Drill Parts Gerotor Hydraulic Motor
.
Product details:
| 1, | model number | BMER |
| 2, | displacement | 540.00ml/r |
| 3, | flange | magneto Mount |
| 4, | shaft | spline shaft |
| 5, | oil port | G1/2 |
| 6, | drain | --- |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | PARKER TG |
Main Specifications:
| Type |
BMER 125 |
BMER 160 |
BMER 200 |
BMER 230 |
BMER 250 |
BMER 300 |
BMER 350 |
BMER 375 |
BMER 475 |
BMER 540 |
BMER 750 |
|
|
Geometric displacement (cm3 /rev.) |
118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N*m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
This type BMER series motors have high torque, widely used on earth auger, drilling rig,soil sampling rig...
Hanjiu Technology Co., Ltd. manufactures low-speed and high-torque hydraulic orbital motors. Importers, distributors and users use it's low-speed and high-torque hydraulic orbital motors as an affordable alternative to Torqmotor Parker (also known as Torqmotor Ross). The market feedback is positive. good. At present, the company have cooperated with Parker torqmotor dealers ( Ross Torqmotor dealers) and users from the United States, Canada, Australia, South Africa, UAE, Germany, Turkey, Mexico, Brazil, Chile and more regions, and provided them with numerous of professional hydraulic orbital motors, Significantly save costs while greatly increasing profit margins.
At present, the low-speed and high-torque hydraulic orbital motor that we have independently developed can be used interchangeably with the following models of torqmotor parker in form, fit, and function:
torqmotor parker tb series
torqmotor parker th series
torqmotor parker tj series
