1 ton - 5 ton Electric Chain Hoist With Travelling Hooks For Construction Industrial
Price:
USD negotiate per unit
MOQ:
1 unit
Delivery Time:
10 -15 working days
Brand:
JCYC
Product Description
1 ton - 5 ton Electric Chain Hoist With Travelling Hooks For Construction Industrial
Features and advantages:
1. The main parts of it adopt high quality steel product to ensure durability.
2. Special specifications and marks can be made according to customers' requirements.
3. Various lifting capacity, meet different needs.
4. The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.
Product technical parameters:
Technical Data(single speed)
| Model | SK0.25 | SK0.5 | SK1.0 | SK1.5 | SK2.0-1 | SK2.0-2 | SK2.5 | SK3.0-1 | SK3.0-2 | SK5.0 |
| Capacity(ton) | 0.25 | 0.5 | 1.0 | 1.5 | 2.0 | 2.0 | 2.5 | 3.0 | 3.0 | 5.0 |
| Lifting speed(m/min) | 9.2 | 8.3 | 6.3 | 8.5 | 6.9 | 3.2 | 6.6 | 6.6 | 4.2 | 3.3 |
| Motor power(kw) | 0.56 | 0.9 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | 3.0 |
| Rotation speed(r/min) | 1440 | |||||||||
| Insulation grade | F | |||||||||
| Power supply | 3-phase/220V-380V | |||||||||
| Control voltage | 24V/36V/48V | |||||||||
| No. of load chain | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 2 |
| Spec. of load chain | 4.0mm | 6.3mm | 7.1mm | 10.0mm | 10mm | 7.1mm | 11.2mm | 11.2mm | 10mm | 11.2mm |
Technical Data(frequency transformer)
| Model | SK0.25 | SK0.5 | SK1.0 | SK1.5 | SK2.0-1 | SK2.0-2 | SK2.5 | SK3.0-1 | SK3.0-2 | SK5.0 |
| Capacity(ton) | 0.25 | 0.5 | 1.0 | 1.5 | 2.0 | 2.0 | 2.5 | 3.0 | 3.0 | 5.0 |
| Lifting speed(m/min) | 0.92-9.2 | 0.83-8.3 | 0.83-8.3 | 0.85-8.5 | 0.69-6.9 | 0.32-3.2 | 0.66-6.6 | 0.66-6.6 | 0.42-4.2 | 0.33-3.3 |
| Motor power(kw) | 0.56 | 0.9 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | 3.0 |
| Rotation speed(r/min) | 1440 | |||||||||
| Insulation grade | F | |||||||||
| Power supply | 3-phase/220V-380V | |||||||||
| Control voltage | 24V/36V/48V | |||||||||
| No. of load chain | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 2 |
| Spec. of load chain | 4.0mm | 6.3mm | 7.1mm | 10.0mm | 10mm | 7.1mm | 11.2mm | 11.2mm | 10mm | 11.2mm |

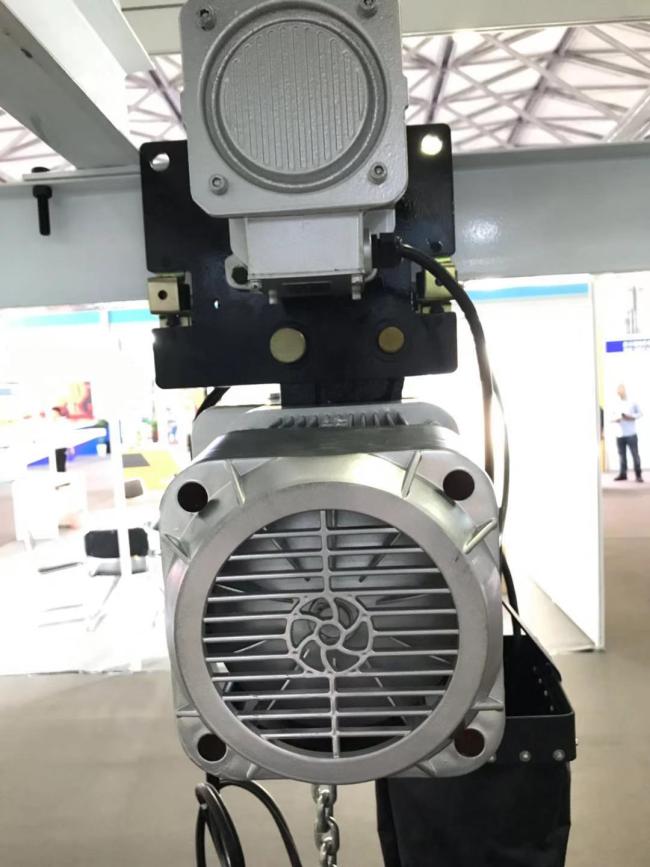

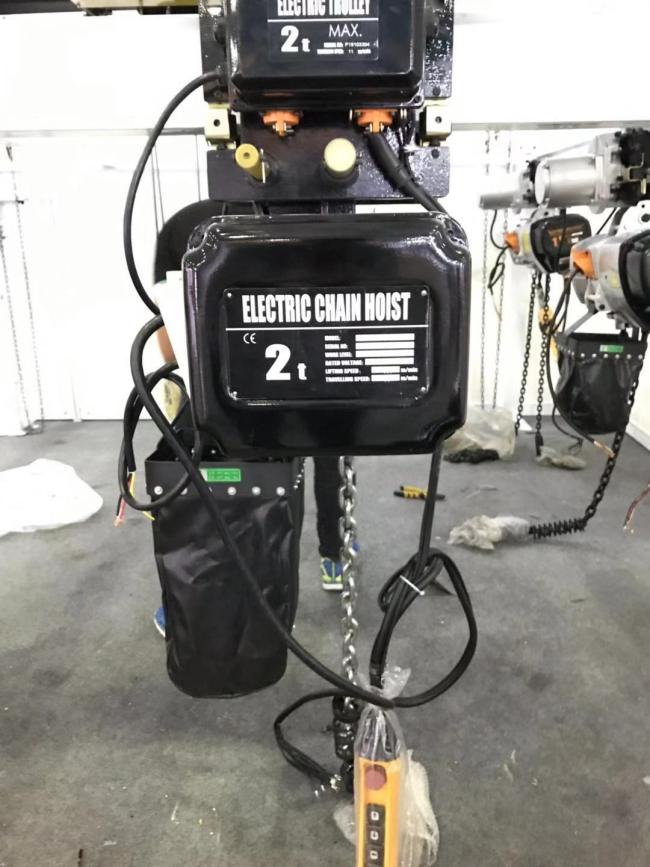

Product show:
