Wire Rope Lever Block 0.8 ton / 1.6 ton / 3.2 ton Lightweight / Compact Design
Wire Rope Lever Block
Product description:
Wire rope lever hoist, also known as wire rope traction machine. It is a new-type, high-efficiency, safe and durable lifting machinery product with three functions of lifting, traction and tensioning. The structure of the whole machine is designed reasonably, the safety factor is high, the service life is long, and it is especially suitable for the areas without power source.
For the wire rope lever block, the machine casing is made of high-strength high-quality aluminum alloy die-casting. The matched steel wire rope has particularly high breaking strength and wear resistance. The length of the steel wire rope is configured according to customer needs. Main capacity is 800 kg, 1600 kg and 3200 kg.
Product technical data:
| Model | Rated capacity (tons) | Pulling capacity (tons) | Rated forward travel(mm) | Efficient length of forward handle(mm) | Drive step | Rope Diameter(mm) | Standard length of rope(m) | Net weight (kg) | Rated forward hand power(N) | Max.overall size (mm) |
| VIT0.8 | 0.8 | 1.2 | ≥52 | 825 | 1 | 8 | 20 | 16 | ≤284 | 428x64x235 |
| VIT1.0 | 1.0 | 1.5 | ≥52 | 825 | 1 | 8 | 20 | 16 | ≤353 | 428x64x235 |
| VIT1.6 | 1.6 | 2.4 | ≥55 | 1200 | 1 | 11 | 20 | 24 | ≤412 | 545x97x286 |
| VIT3.2 | 3.2 | 4.8 | ≥28 | 1200 | 2 | 16 | 20 | 48 | ≤441 | 660x116x350 |

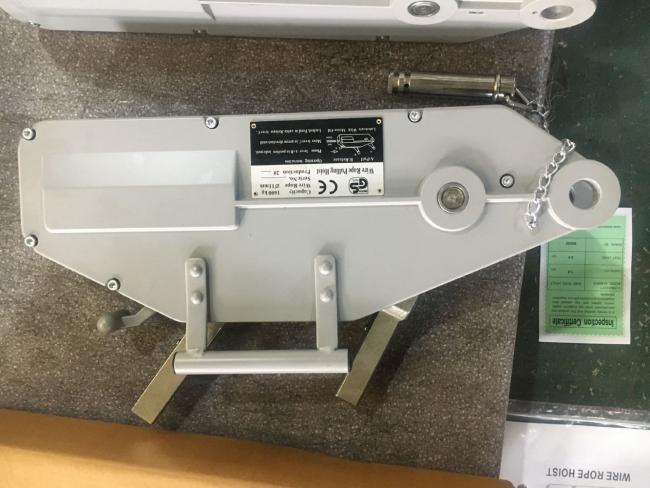

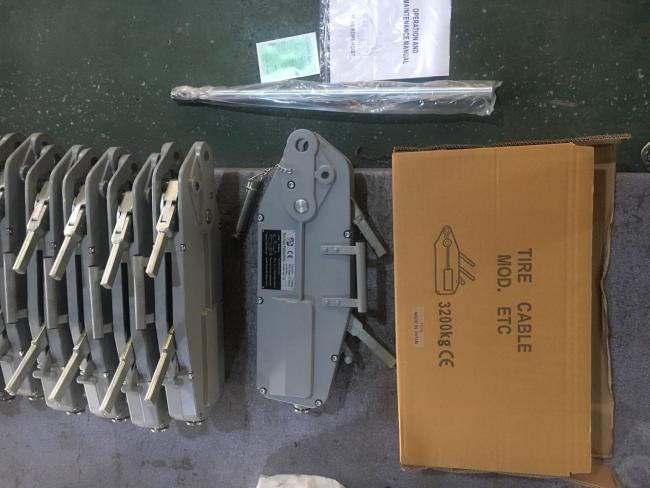

Product show:
