Pressure 0.4 MPA Industrial Bag Filters For Vegetable Oil / Cosmetic
Pressure 0.4 MPA Industrial Bag Filter with Pump Used Vegetable Oil , Cosmetic etc
Product Applications:
Foodstuff: Beer, Vegetable oil, Milk, Juice, Edible oil, Sweet water, Mineral water
Decoration Industry: Paint, Printing ink
Cosmetic Industry: Cosmetic water, Perfume
Chemical : Textile chemical, sensitization chemical
Petroleum Products
Product competitive advantage:
1, Small occupancy,
2, High-efficiency,
3, Enclosed operation
4, Excellent applicability.
5, Easy to be changed.
Product Description:
The filtration system installed in a small cart, it can be flexible in different industry and process.
DL series filter bag is mainly composed by filter cylinder, cylinder lid, quick-opening structure, filter bag reinforce net.
DL series filter bag belongs to pressure filter equipment , liquid flow into the filter bag through the side-way. Filter bag itself is fitted in the reinforce net that the qualified filtrate is achieved after the liquid pass the filter bag which has various precision ranks. The impurity is seized by the filter bag. The filter bag is easy to be changed and has little consumption of materials.
Product Specifications:
| Model | Filtration area ㎡ | Inlet/outlet caliber mm | Max flowrate ㎥/h | Max work pressure Mpa | Max temperature ℃ | Nominal filtration precision μm |
| DL-1P1S | 0.25 | DN40 | 10 | 0.4 | 120The working temperature is related to the material of filter bag . | 1,5,10,15,25,40,50,65,75,80,100……1200 |
| DL-1P2S | 0.5 | DN40 | 20 | |||
| DL-4P2S | 2 | DN80 | 80 | |||
| DL-8P2S | 4 | DN125 | 160 | |||
| DL32P2S | 16 | DN200 | 640 |

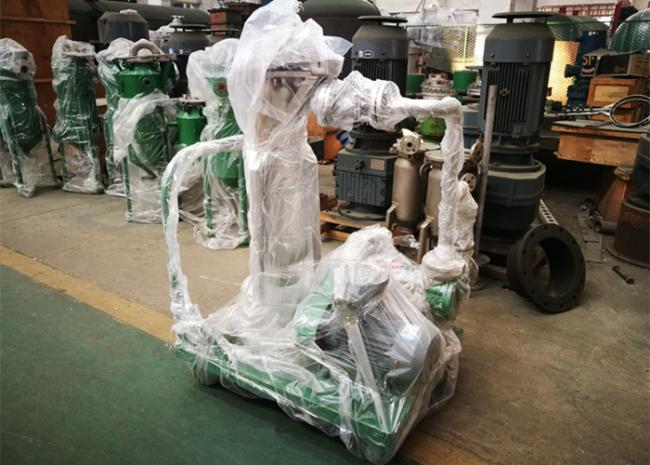

Packing
Plastic film package inside, wooden case package outside
