Stranded Loose Tube No-metallic Strength Member No-Armored CableⅠGYFTY Outdoor Fiber Cable

Product details

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.

Characteristics

• Good mechanical and temperature performance
• High strength loose tube that is hydrolysis resistant
• Special tube filling compound ensure a critical protection of fiber
• Crush resistance and flexibility
• The following measures are taken to ensure the cable watertight:
• Single Fiber Reinforced Plastic as the central strength member
• Loose tube filling compound
• 100% cable core filling

Standards: IEC 60794-1.

Technical Parameters.

Note:

• Suffix X denotes fiber type.
• The nominal value of the PE sheath thickness is 1.8mm

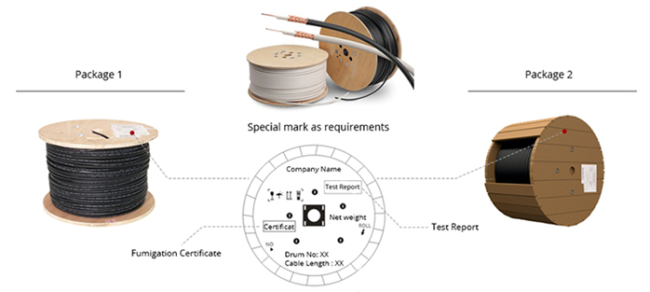

Package

OMC offers two types of cable package. Package 1 is usually for indoor, light weight cables. Package 2 is usually for outdoor, heavy weight cables. Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements.
