288 SC / LC Fiber Termination Box , Optical Termination Box 385 * 245 * 130mm
Price:
Negotiable
MOQ:
1 pcs
Delivery Time:
4-7 working days
Brand:
OMC or OEM
Product Description
Modified Polymer Plastic 288 Fibers IP68 Fiber Access Terminal Closure Black for Outdoor Application
1.General Introduction
FATC-004 is designed to seal without screws. The compact size and flip-over cover bring easy operation as well as complete function.
The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. It is designed to prevent from operation damage.
- Specification
| Dimension(mm) | 395×245×130 | Max. capacity(Single fiber) | 288 |
| Weight(kg) | 5 | Sealing type | Mechanical |
|
Cable ports |
1 input cable port for un-cut cable from diameter from10~17.5mm. 6 output cable ports for cable diameter from 8~17.5mm. |
Single splice tray capacity(Single fiber) |
24 |
| Splice tray quantity | 1～12 |
3.2 Parts list
- Main kits

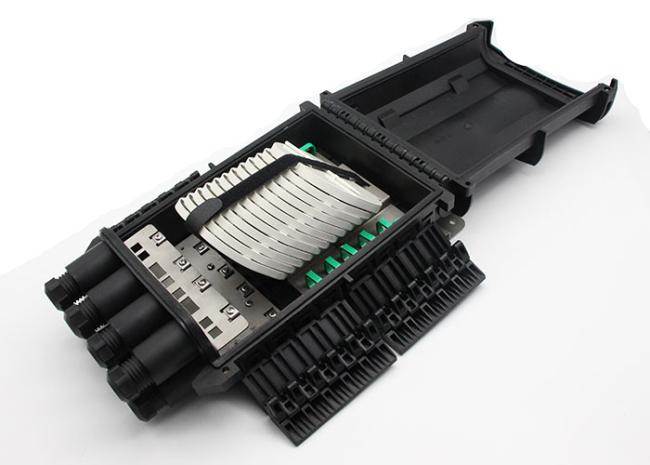

Picture 1
|
S/N |
Description |
Quantity |
Note |
| 1 | Lid | 1 | 337(L)×242(W)×63(H)mm. |
| 2 | Base | 1 | |
| 3 | Sealing ring | 1 | Box sealing |
| 4 | Splice tray | 12 | For cable splicing and storage |
| 5 | Splice tray cover | 1 | |
| 6 | Splice tray bandage | 1 | Fixing several splice trays |
| 7 | Fastener bolt | 2 | Fixing lid and cover of closure |
| 8 | Buckle | 4 | Fixing lid and cover of closure |
| 9 | Tight tool | 1 | Special for tight the nuts |
| 10 | Cable fixing panel | 1 | Fixing un-cut cable |
|
11 |
Adaptor installation panel |
4 |
An adaptor panel for 6 SC simplex adaptors |
| 12 | Splice tray bracket | 1 | Install 4 splice trays |
| 13 | Top cover stopper | 1 | Limit top cover |
| 14 | Plastic nuts | 2 | Fixing cable |
- Standard parts
| S/N | Description | Quantity | Note |
| 17 | Wall mounting kit | 1 | For wall mounting |
| 18 | Expansion anchor bolt | 2 | Parts of the wall mounting kit |
| 19 | Hexagon bolt | 2 | Parts of the wall mounting kit |
| 20 | Nylon tie(3*120mm) | 12 | Fixing cable |
|
21 |
Fusion sleeve(Φ1.0*60mm) |
According to the fiber cores. |
Cable splicing |
| 22 | 0.2m coil tube | 1 | Protect the fiber |
| 23 | Insulation tape | 1 | Accessorial fixation |
| 24 | 0.5m EVA tube | 1 | Protect fiber |
| 25 | Drier | 1 | |
| 26 | M6 internal hexagonal wrench | 1 | Tool to open the box |
| 27 | 14# grommet | 2 | For cable dia. From 12-17.5mm |
| 28 | 41# grommet | 2 | For cable dia. From 8-12mm |
| 29 | Plastic plug | 4 | Seal the cable port |
| 30 | Iron spanner | 1 | Tool |
- Optional parts
| S/N | Description | Quantity | Note |
| 25 | Pole mounting kit | 1 | For pole mounting |
| 26 | Valve | 1 | Testing sealing performance |
