Self Propelled 3 Boom Robotic Arch Install Machine
KGM12200 Arch install Machine, robotic steel support installing in tunnels

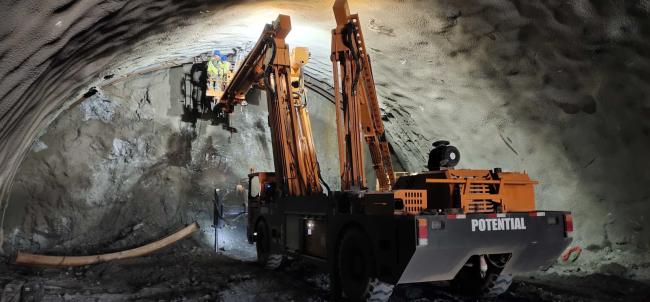

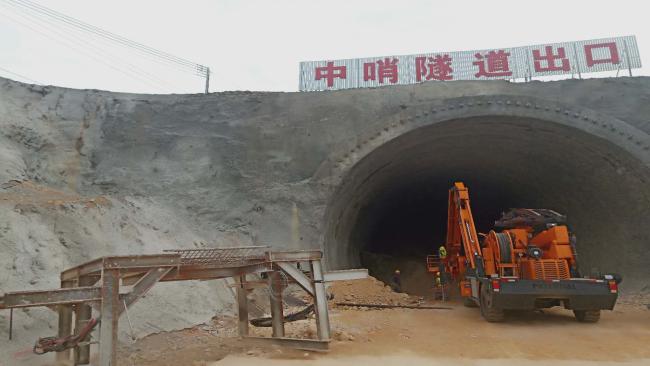

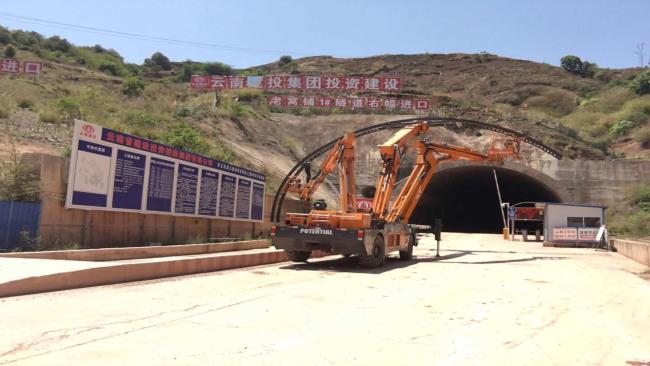

Application of arch install machine
The KGM12200 is a self-propelled 3-boom lifters for robotic steel support installing and man lifting in tunnels, motor and diesel engine. The lastest tunnel equipments researched by POTENTIAL is a creation in the world, we own fully inttectual property rights, including 12 patents of invention, more than 20 patents for utility models and 1 design patent.
Features

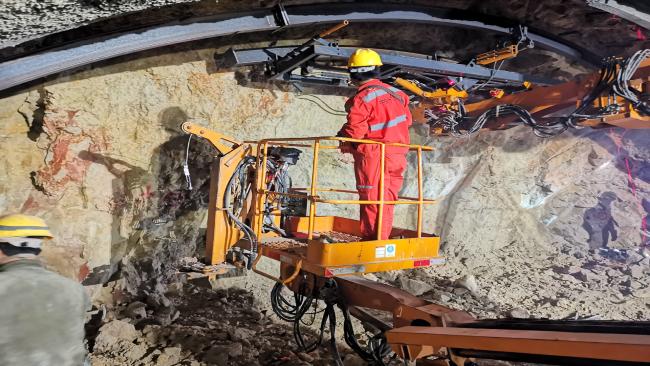

The working device on the boom is composed of grabbing manipulator, pallet, platform and small crane. Boom is controlled from wireless remote control and from the platform. The platform is specially designed for mechanized installation of steel supports and it is equipped with full rotation and automatic levelling system.
Specifications
| No | Items | Parameters |
| Whole unit | Weight | 29000kg |
| Travelling Speed | 0-18kg/h | |
| Grade Ability | 22° | |
| Gound Clearance | 400mm | |
| Traction/Steering | 4-Wheels driving/4-wheels steering | |
| Walking mode | Tyre | |
| Transpotation dimension | 11000×2800×4300mm | |
| Max.Operating Height | 12m | |
| Max.Operating Width | 20m | |
| Minimum Turning Radius | Inner 3m/Outer 7.5m | |
| Engine | Type | 6 cylinder liguid-cooled diesel engine |
| Rated Power | 153kw/2000rpm | |
| Motor | Rated Power | 90kw |
| Motor | Rated Power | 37kw/1480rpm |
| Boom Assembly | Max.Effective Working Length | 10.5m |
| Max.Extended Length of Main Boom | 13.5m | |
| Max. Extended Lenght of Auxillary Boom | 16m | |
| Pallet Payload | 2000kg | |
| Platform Payload | 400kg | |
| Boom Lifting Machanism Payload | 2000kg | |
| Platform Mini Crane Payload | 400kg | |
| Electrical System | Operating Mode | Wireless Remote Control |
| Control Mode | Controller | |
| Cable Reel | Power Supply | 380V/50HZ (optional) |
| Current | 240A |

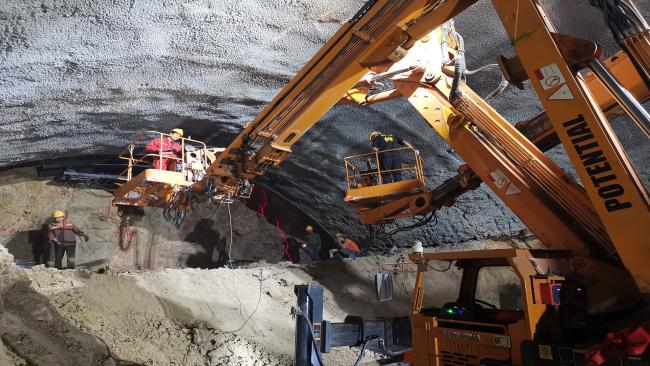

Arch Rib Lifting and installation
