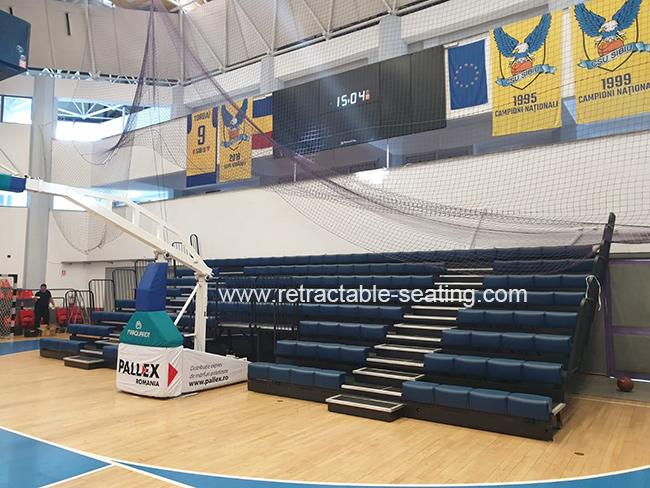

Indoor Retractable Theater Seating Temporary Grandstand Seating With Seat Number
Indoor Retractable Seating / Retractable Grandstands with Seat Number
Quick Detail
| Seat Modules | HDPE modules in mono tone colors |
| Manufacturing process | blow molding |
| Assembled length | 460mm |
| Seat Surface | 305mm width |
| Unit Structural | 160kg |
Product description
Burgeon retractable polymer bench is our simple multifunctional seating option for gyms and multi-purpose facilities. Using blow molded construction, the retractable seating polymer bench offers comfortable, generous seat spaces ergonomically contoured for spectator comfort. The rear and underside of the polymer bench has a smooth continual flowing line to aside with the cleaning and up keep of the deck space. The Echo Bench can be provided within our unique VIP design. The VIP design allow for stadium identification or custom color arrangement that give you a complete custom fit to your venue.
Options:
- Seat numbers
- Contrasting color end panels
- VIP Programme - Programme available in your color choice
Understructure Introduction
A.Frame System:
1) Wheels: Wheels with non-marking poly urethane face to protect wood and synthetic floor surfaces, with molded-in metal bush and bearing to fit a10mm diameter axles secured with C Clips.
2) Slant Columns: Tubular Shape Steel (RHS).
3) Deck Stabilizer: Steel components bolted to nose and riser at three locations per section. Interlocks with adjacent stabilizer on upper tier using low-friction nylon roller to prevent separation and misalignment.
4) Deck Support: Securely captures decking for entire length of section.
B.Deck System:
1) Section Lengths: Each bank shall contain sections not to exceed 5980mm in length with a minimum of two supporting frames per row, each section.
2) Rear Riser: Continuous roll formed steel members
3) Nosing: Continuous Tubular Steel Section (RHS)
4) Deck End Overhang: Not to exceed frame support by more than 1715mm.
