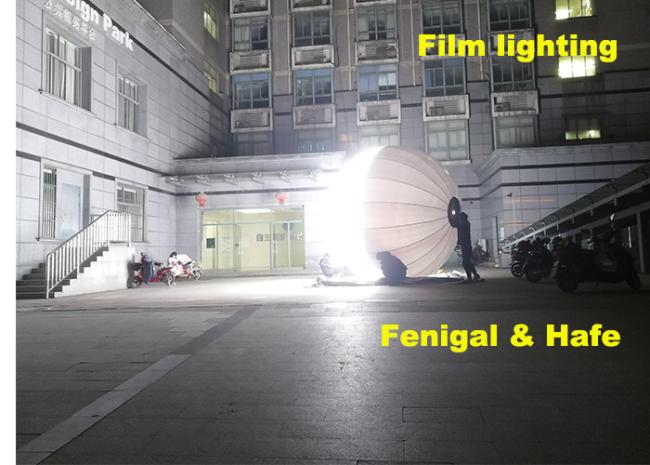

Outdoor 4x1200w Flicker 110V Film Lighting Balloon
Outdoor 4x1200w flicker Hybrid HMI+Tungsten Moive Shooting Film Lighting Balloon
Daylight ranges are compatible with international brand electronic ballasts. Economic flicke-free EBs are also available.
Our daylight range lighting balloons are built in such a way that they could work with your Arri electronic ballasts to form a set light wanted. Our veam connector receptable box gives it a convenience for different comnbinations of power.
EB pictures at the courtesy of ARR:575/1200W 1200/1800W 2.5/4kW
POWER GEMS Also compatible to Power Gems electronic ballast from 575 till 4000w
HMI Daylight balloons
· HMI lighting balloons reproduce daylight
· They can be used as a key light or as a fill light to produce a very natural effect
· They provide a color temperature of 5,600 K and offer up to 1,440,000 lumens
· Available in 4 shapes: tube, diamond, ellipse,
· Many combinations of power (HMI): from 1.2 k to 16 k watts
· It is a perfect lighting solution for stage and location film production as well as photography, by combining lightweight design and overall maneuverability
Tungsten balloons
· Tungsten lighting balloons offered in a wide range of possibilities
· Used indoor and outdoor, they provide a color of temperature of 3200 K
· From 2 K to the powerful 20 K source
· Provided in 3 shapes: ellipse, tube or diamond
· Fully dimmable
| Sphere - Ellipse: HMI | |||||||||
| Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
| tanks | |||||||||
| (291 cft) | |||||||||
| 1,150 W HMI | Sphere | Ellipse | 2x 575 W / G22 | 6.5’ | 6.5’x8’ | 35’ | 1 | 1 | 30 min | 45’ | 10 mph |
| 2.4 KW HMI | Sphere | Ellipse | 2x 1.2 KW / G38 | 8’ | 8’x10’ | 35’ | 2 | 1 | 35 min | 55’ | 15 mph |
| 2.4 KW HMI | Sphere | Ellipse | 2x 1.2 KW / G38 | 10’ | 10’x12’ | 45’ | 3 | 1 | 35 min | 55’ | 15 mph |
| 4.8 KW HMI | Sphere | Ellipse | 4x 1.2 KW / G38 | 12’ | 12’x14’ | 65’ | 5 | 1 | 45 min | 100’ | 20 mph |
| 5 KW HMI | Ellipse | 2x 2.5 KW / G38 | 14’x16’ | 75’ | 8 | 2 | 60 min | 100’ | 25 mph |
| 8 KW HMI | Ellipse | 2x 4 KW / G38 | 14’x16’ | 75’ | 8 | 2 | 60 min | 100’ | 25 mph |
| 10 KW HMI | Sphere | 4x 2.5 KW / G38 | 16’5 | 80’ | 10 | 2 | 75 min | 100’ | 25 mph |
| 16 KW HMI | Sphere | 4x 4 KW / G38 | 16’5 | 80’ | 10 | 2 | 75 min | 100’ | 25 mph |
| ACCESSORIES: | |||||||||
| Skirts | |||||||||
| Reflectors | |||||||||
| Sphere - Ellipse: Tungsten | |||||||||
| Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
| tanks | |||||||||
| (291 cft) | |||||||||
| 4 KW Tungsten | Sphere | Ellipse | 4x 1 KW / G6.35 | 6.5’ | 6’x8’ | 40’ | 1 | 1 | 30 min | 45’ | 10 mph |
| 4 KW Tungsten | Sphere | Ellipse | 4x 1 KW / G6.35 | 8’ | 8’x10’ | 45’ | 2 | 1 | 30 min | 45’ | 15 mph |
| 5 KW Tungsten | Sphere | Ellipse | 2x 2.5 KW / G38 | 8’ | 8’x10’ | 40’ | 2 | 1 | 30 min | 45’ | 15 mph |
| 5 KW Tungsten | Sphere | Ellipse | 2x 2.5 KW / G38 | 10’ | 10’x12’ | 45’ | 3 | 1 | 30 min | 45’ | 15 mph |
| 8 KW Tungsten | Sphere | Ellipse | 8x 1 KW / G6.35 | 12’ | 12’x16’ | 70’ | 5 | 1 | 50 min | 100’ | 20 mph |
| 10 KW Tungsten | Sphere | Ellipse | 2x 5 KW / G38 | 12’ | 12’x16’ | 70’ | 5 | 1 | 50 min | 100’ | 20 mph |
| 15 KW Tungsten | Sphere | Ellipse | 2x 5 KW | 16’5 | 80’ | 10 | 2 | 70 min | 120’ | 25 mph |
| + 2x 2.5 KW / G38 | |||||||||
| 20 KW Tungsten | Sphere | Ellipse | 4x 5 KW / G38 | 16’5 | 80’ | 10 | 2 | 70 min | 120’ | 25 mph |
| Sphere - Ellipse: Hybrid | |||||||||
| Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
| tanks | |||||||||
| (291 cft) | |||||||||
| 3.7 KW | Sphere | Ellipse | 1x 2.5 KW | 8’ | 8’x10’ | 35’ | 2 | 1 | 40 min | 45’ | 15 mph |
| Hybrid | + 1x 1.2 KW G38 | ||||||||
| 3.7 KW | Sphere | Ellipse | 1x 2.5 KW | 10’ | 10’x12’ | 45’ | 3 | 1 | 40 min | 45’ | 15 mph |
| Hybrid | + 1x 1.2 KW G38 | ||||||||
| 7.4 KW | Sphere | Ellipse | 2x 2.5 KW | 12’ | 12’x14’ | 60’ | 5 | 1 | 55 min | 100’ | 20 mph |
| Hybrid | + 2x 1.2 KW G38 | ||||||||
| 8.4 KW | Ellipse | 6x 1 KW | 8.8’x12’ | 40’ | 4 | 1 | 40 min | 55’ | 15 mph |
| Hybrid | + 2 x 1.2 KW G6.35 + G38 | ||||||||
| 9.6 KW | Ellipse | 6x 1 KW | 12’x14’ | 50’ | 5 | 1 | 55 min | 100’ | 20 mph |
| Hybrid | + 3x 1.2 KW G6.35 + G38 | ||||||||
| 18 KW | Ellipse | 6x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph |
| Hybrid | + 3x 4 KW G6.35 + G38 | ||||||||
| 18 KW | Sphere | 2x 5 KW | 16.5’ | 80’ | 10 | 2 | 75 min | 100’ | 20 mph |
| Hybrid | + 2x 4 KW G38 | ||||||||
| 19 KW | Ellipse | 6x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph |
| Hybrid | + 1x 5 KW | ||||||||
| + 2x 4 KW / | |||||||||
| G6.35 + G38 | |||||||||
| 20 KW | Ellipse | 8x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph |
| Hybrid | + 3x 4 KW | ||||||||
| G6.35 + G38 | |||||||||
| Sphere - Ellipse: Sodium / Mercury | |||||||||
| Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
| tanks | |||||||||
| (291 cft) | |||||||||
| 4 KW | Sphere | 4x 1 KW / | 14’ | 60’ | 5 | 1 | 65 min | 100’ | 15 mph |
| Sodium / Mercury | Mogul E39 | ||||||||
