Low noise Case CX50 rubber excavator tracks 250kg with 5220mm Overall length
Case CX50 Excavator rubber track 400*72.5*72:
| Applicable machines | various kinds of excavators |
| Material | rubber and steel |
| Specification | 400*72.5*72N(can be customized) |
| Installation position | Installed on the excavators |
Warranty: Guarantee one year under normal use
Appliciation: Mainly used in excavator and other model number can be used in
snowblower, snowmobile, robot, wheelchair, (mini) excavators, track loaders,
pitch paver,agricultural harvest, dumpers...Etc.
Adaptation Modes:
| MODEL | ORIGINAL SIZE |
| CX50 (CASE) | 400X72,5X72 |
| CX50B (CASE) | 400X74X72 |
| CX50BMC (CASE) | 400X74X72 |
| CX50BMR (CASE) | 400X74X72 |
| CX50BZTS (CASE) | 400X74X72 |
Characteristics of rubber track:
1). Less damage to the ground surface
2). Low noise
3). High running speed
4). Less vibration;
5). Low ground contack specific pressure
6). High tractive force
7). Light weight
8). Easy to change
About us:
We supply Rubber Tracks, Rubber Tracks for Truck, Small Rubber Track,
Mini Asphalt Paver Rubber Track, Rubber Track for Harvesting Excvavtor,
Rubber Track for Skid Steer Loader, Rubber Track for Snowmobile,
Rubber Track for snowblower, Rubber track for robot, etc.
Parameter:
The data below just part of our size. Pls noted that we can also customized the size for you if you need other size.
| Width*Pitch length(mm) | Number of Links | Width*Pitch length(mm) | Number of Links | Width*Pitch length(mm) | Number of Links |
| 130*72 | 28-53 | 300*52.5K | 72-84 | 400*72.5KW | 68-92 |
| 150*60 | 28-49 | 300*52.5KW | 72-92 | 400*74 | 68-76 |
| 150*72 | 29-40 | KB300*52.5 | 72-92 | 400*75.5K | 74 |
| 170*60 | 30-40 | KB300*52.5N | 72-98 | B400*86 | 52-55 |
| 180*60 | 30-40 | JD300*52.5N | 72-98 | 400*90 | 42-56 |
| 180*72 | 30-58 | 300*53K | 80-84 | Y400*142 | 36-37 |
| 180*72K | 30-37 | 300*55 | 70-86 | 400*144 | 36-41 |
| B180*72K | 34-51 | 300*55.5K | 76-82 | Y400*144K | 36-41 |
| B180*72A | 30-51 | 300*71K | 72-55 | 420*100 | 50-58 |
| H180*72 | 30-50 | 300*109N | 25-42 | 450*71 | 76-88 |
| 190*60 | 30-40 | K300*109 | 37-41 | DW450*71 | 76-88 |
| 190*72 | 34-39 | 300*109WK | 35-42 | 450*73.5 | 76-84 |
| 200*72 | 34-47 | B300*84 | 78-52 | 450*76 | 80-84 |
| 200-*72K | 37-47 | T300*86K | 48-52 | 450*81N | 72-80 |
| 230*48 | 60-84 | 320*52.5 | 72-98 | 450*81W | 72-78 |
| 230*48K | 60-84 | B320*52.5 | 68-98 | KB450*81.5 | 72-80 |
| 230*72 | 42-56 | 320*54 | 70-84 | K450*83.5 | 72-74 |
| 230*72K | 42-56 | B320*86 | 49-52 | B450*84 | 53-56 |
| 230*96 | 30-48 | 320*90 | 52-56 | B450*86 | 52-55 |
| 230*101 | 30-36 | 320*100 | 38-54 | 450*90 | 58-76 |
| 250*47K | 84 | 320*100W | 37-65 | KU450*90 | 58-76 |
| 250*48.5K | 80-88 | Y320*106K | 39-43 | T450*100K | 48-65 |
| 250*52.5K | 72-78 | 350*52.5 | 70-92 | K450*163 | 38 |
| 250*72 | 47-57 | 350*54.5K | 80-86 | 485*92W | 74 |
| B250*72 | 34-60 | B350*55K | 77-98 | 500*90 | 76-82 |
| B250*72B | 42-58 | 350*56 | 80-86 | 500-92 | 72-84 |
| E250*72 | 37-58 | 350*75.5K | 74 | 500*92W | 78-84 |
| 250*96 | 35-38 | 350*90 | 42-56 | 500*100 | 71 |
| 250*109 | 35-38 | 350*100 | 46-60 | K500*146 | 35 |
| 260*55.5K | 74-80 | 350*108 | 40-46 | 600*100 | 76-80 |
| Y260*96 | 38-41 | 350*109 | 41-44 | 600*125 | 56-64 |
| 260*109 | 35-39 | Y370*107K | 39-41 | 700*100 | 80-98 |
| 280*72 | 45-64 | 400*72.5N | 70-80 | 750*150 | 66 |
Product Application(Brand):
1.Mini excavator rubber tracks:
Specializing in the production of various models of mini excavators with rubber tracks,
can be equipped with imported models; Komatsu, Hitachi, Carter, Sumitomo,Doosan,
modern,Volvo, Kubota,Yanmar, Takeuchi, Bobcats, JCB and so on.
2.Crawler excavators, crawler loaders, crawler agricultural machines, pavers tracks,
snow tracked vehicle and other special series crawler and rubber track blocks.
Products for excavators, bulldozers, paver, crawler cranes, pipelayers Weight Model:
Carter excavator;Volvo excavator;Komatsu excavator;Komatsu bulldozer
Hitachi excavator;Daewoo / Doosan excavator;Kobelco excavator;Sumitomo excavator
Kato excavators,;Kubota;Ishikawajima;Fukuda reves
Takeuchi;Bobcats;Yanmar;Yanmar;Sunward;Carter;Kubota harvesters and other
excavators,track loaders,pavers, agricultural machines.
3.Industrial tracked using brand as below:
VOLVO, KOMATSU, KUBOTA, IHI, TAKEUCHI, KOBELKO, HITACHI, YANMAR, FURKAWA,
HANIX, KATO, SUMITOMO, BOBCAT, AIRMANN, CAT, , Doosan,
Hyundai, Fukuda Revo, Sunward, Sany , Liugong, constant special, Jiang Lu,
Hongda, Jin workers, military Alliance, Carter, Lishide.
4.Harvester Brand: Kubota, Jiangsu World, Coria, Japan, Yanmar, Fukuda, Korea Datong.

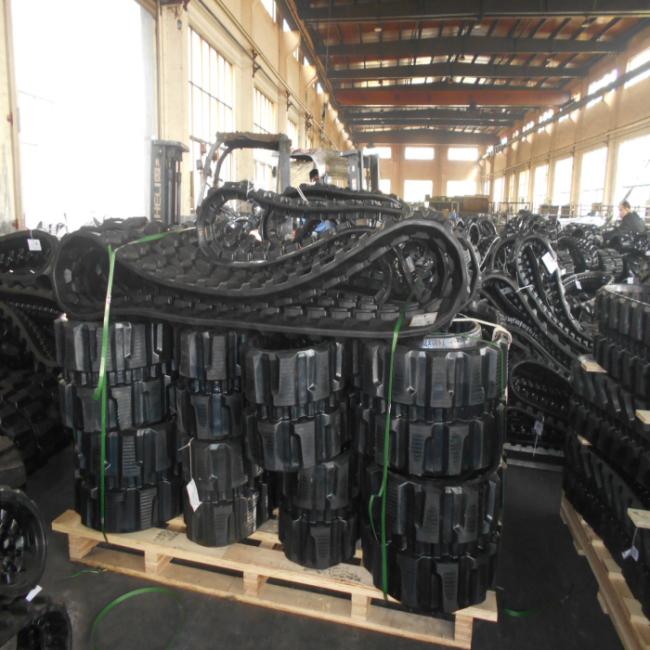

Warehouse:
