AC Motor Driven Electric Luggage Cart 2 Seats Electric Golf Buggy For Resort
4kW AC Motor Driven Battery Powered Carry Van With Enclosed Cargo Box 2 Person Electric Utility Carts
4kW AC Motor Driven Free Maintenance Battery Powered Mini Dimension Carry Van With a Enclosed Cargo Box
Feature Description
driven by a 5kW AC motor superior loading performs,enclosed cargo platform design,multiple modification choice.
Dimensions:
| HS CODE | 8703101900 | ||
| Qty/20'GP (Assembled) | 1 UNIT | ||
| Qty/40'HQ (Assembled) | 3 UNITS | ||
| Passenger capacity | 2 seats | ||
| Max.Speed | 28km/h | ||
| Range(loaded) | 80km(level road) | ||
| Climbing Ability | 10% | ||
| Braking Distance | ＜5.0m | ||
| Min.Turning Radius | 5m | ||
| Min.Clearance | 135 mm | ||
| Recharge time | 8~10h | ||
| L×W×H | 3520*1220*2020mm | ||
| L×W×H {CARGO SIZE} | 1750*1100*1100mm | ||
| F/R Tread | 859mm//1000mm | ||
| Axle Distance | 2386mm | ||
| Curb Weight | 485kg | ||
| Max. loading | 500kg | ||
| Motor | 48V/4KW AC motor | ||
| Controller | 48V | ||
| Battery | Maintenance-free battery 8V*6PCS | ||
| Body & Roof | The front cover, seat bucket, body and rear bumper cover parts are injection molded with engineering PP special materials for aging resistance and ultraviolet protection+Grsted black square pipe frame + PP material injection molding roof | ||
| Windshield | Foldable windshield | ||
| Seats | PU leather + special sponge modeling sofa | ||
| Rear view mirror | Left and right mirrors | ||
| Bumper | Front Bumper | ||
| Tire | 10 inch aluminum alloy wheel +10 inch golf cart special tire | ||
| Chassis | Q235 high-strength sheet metal profile welding, electrophoresis + anti-rust spraying | ||
| Front Suspension | McFerson independent double A swing arm front suspension system + helical spring + damping hydraulic shock absorber. | ||
| Rear suspension | Integrated rear axle, speed ratio 15.89:1 drag rear suspension + helical spring shock absorber + damping hydraulic shock absorber + rear stabilizer bar | ||
| Lighting system | LED front combination (near light, high beam, turn signal, daily light) LED rear taillights (brake lights, running lights, turn signal lights); snail horn, reversing buzzer. |
||
| Brake system | 180mm diameter hydraulic drum brake rear axle: four-wheel hydraulic brake, front disc and rear drum + foot pedal parking | ||
| Steering system | Double gear rack steering system, automatic clearance compensation function | ||
| Charger | Output:48V, Input AC 220V/50HZ～60HZ | ||
| Dashboard | Injection molding dashboard, ignition switch, direction selection switch, high beam switch, horn and headlight combination switch, water cup seat; USB+Type-c charging/dual USB charging. | ||
| Display | IP66 waterproof grade 2.5 inch LCD multimedia combination instrument, with vehicle fault identification and detection function | ||
| Roof | beige | ||
| Optional color | White, Metallic silver, Metallic black, Blue,Bright cherry-red, Green, Red. | ||

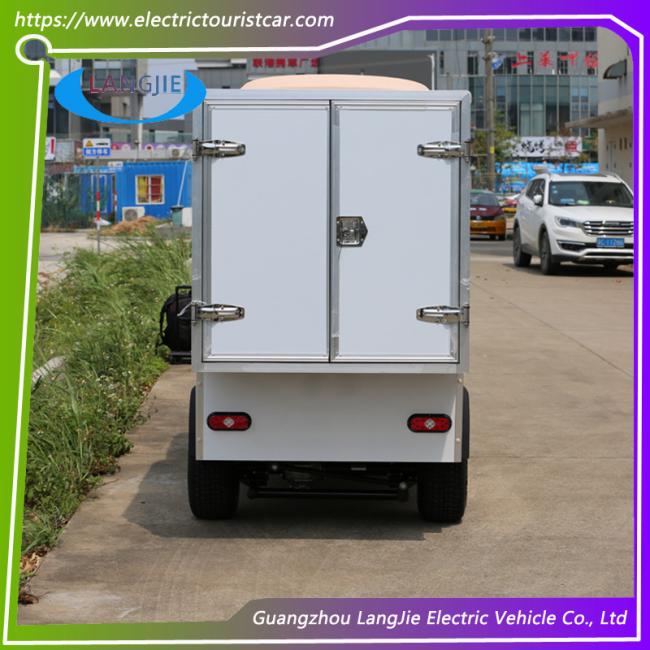

Showing Photos:
Product Advantages
1. Good aftersale-service, as most parts are manufactured by ourselves;
2. Good hill climbing ability, the system allows you to customize the car to fit your course;
3. Smart steering system, easy to make forward and backward;
4. Good climbing ablity and can park easily on Hills;
5. Can be easily to be modified to Towing Tractor.
FAQ:
1. What's your payment term?
T/T 30% deposit and balance paid before shipment.
2. Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,
3. How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it .
