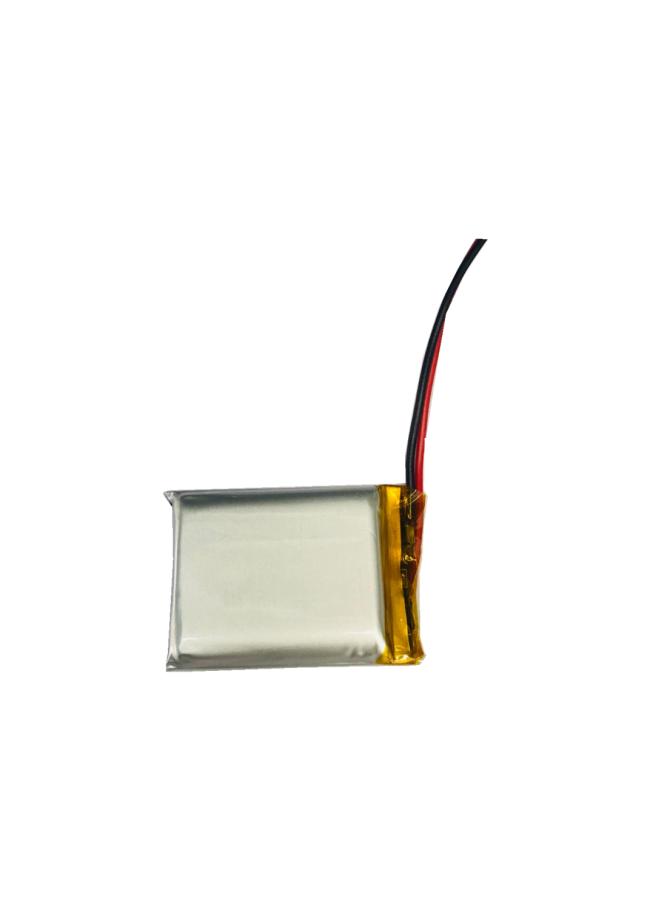

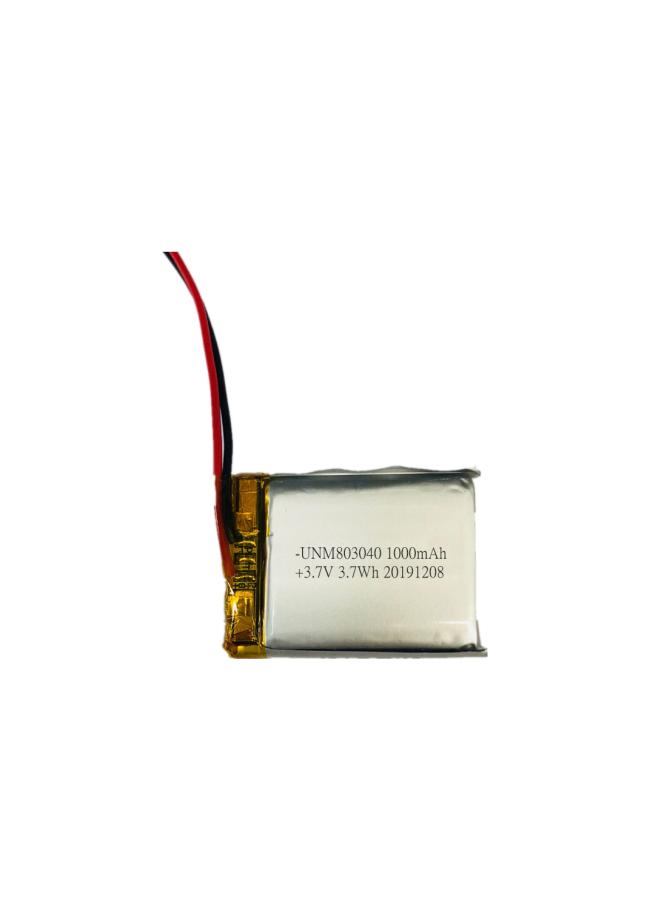

803040 Small 3.7V Rechargeable Battery 3.7Wh 1000mAh With JST-PH-2P Connector

Price Negotiable

Price: 1.25-3USD/PCS

MOQ: 5000PCS

Delivery Time: 7-30 days

Brand: UNEMETECH

Product Description

Li-ion 3.7V Battery 803040 3.7Wh Li-Polymer Battery 1000mAh with JST-PH-2P Connector

803040 1000mAh 3.7V Li-Polymer Battery Description

Model : UNM803040
Voltage : 3.7V
Capacity : 1000mAh
Cell Size : 8.3*30.5*40.5mm
Finished Product Size : 8.5*31.0*42.5mm

803040 1000mAh 3.7V Li-Polymer Battery Parameter Table

Item		Specification	Remark※
1.1.1 Typical Capacity		1000mAh	0.5C charge 0.2C discharge
Minimum Capacity		1000mAh
1.1.2 Nominal Voltage		3.7V
1.1.3 End Voltage		3.0V
1.1.4 Charging Current (Std.)		0.2CA=(200mA)	Ambient temperature 0~+45℃
1.1.5 Charging Current (Max.)		1.0CA=(1000mA)	Ambient temperature 0~+45℃
1.1.6 Charging Voltage		4.2V
1.1.7 Charging Time (Std.)		6~7.0 hours
1.1.8 Charging Time (Max.)		2.0-3.0hours
1.1.9 Discharging Current (Std.)		0.2CA=(200mA)	Ambient temperature 0~+60℃
1.1.10 Continuous Discharging Current (Max.)		1.0CA=(1000mA)	Ambient temperature 10~+60℃
1.1.11 Cell Internal Resistance(25℃)		≤250mΩ	AC Impedance 1KHz
1.1.13 Battery Weight		About 18g
1.1.14Temperature range for storage	less than 1 month	-5~+45℃	Percentage of recoverable capacity 80﹪
	less than 3 month	0~+35℃
	less than 1 year	23±5℃
1.1.15 Open Circuit Voltage		TBD	Measure with voltmeter.
