Long Narrow 3.7V Custom Battery Packs 260mAh 351363 for Intelligent Glasses
351363 260mAh 3.7V Long and Narrow Lithium Polymer Battery Pack for Intelligent Glasses
Battery type: Li-polymer battery
Voltage: 3.7V
Cell Size: 3.3*13.5*63.5mm

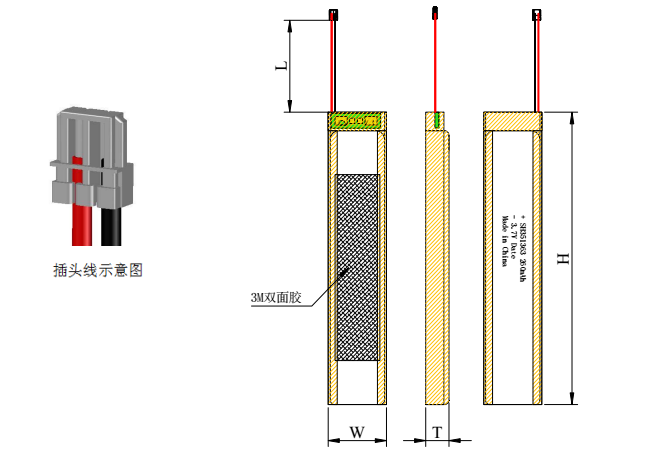

Battery Pack Size: 3.5*14.0*65.5mm
Capacity: 260mAh
Cycle life: >500 times
warranty: One year
Main Advantage
1. Factory- welcome to our factory to have a visit
2. Free sample-can provide several samples for test
3. Clean"Green" energy,environment friendly
4. Short Lead time- usually 3-5 working days for small order or sample
5. Passed most of certification test, such as CE,ROHS, IEC62133,MSDS,UN38.3,etc
6. OEM/ODM- can help customize any size as you need
7. High quality- One by one test before shippment
351363 260mAh Li-polymer battery Parameter Table
|
Item |
Specification |
Remark※ |
|
|
1.1.1 Typical Capacity |
260mAh |
0.5C charge 0.2C discharge |
|
|
Minimum Capacity |
250mAh |
||
|
1.1.2 Nominal Voltage |
3.7V |
|
|
|
1.1.3 End Voltage |
3.0V |
|
|
|
1.1.4 Charging Current (Std.) |
0.2CA=(52mA) |
Ambient temperature 0~+45℃ |
|
|
1.1.5 Charging Current (Max.) |
1.0CA=(260mA) |
Ambient temperature 0~+45℃ |
|
|
1.1.6 Charging Voltage |
4.2V |
|
|
|
1.1.7 Charging Time (Std.) |
6~7 hours |
|
|
|
1.1.8 Charging Time (Max.) |
2~3 hours |
|
|
|
1.1.9 Discharging Current (Std.) |
0.2CA=(52mA) |
Ambient temperature -20~+60℃ |
|
|
1.1.10 Continuous Discharging Current (Max.) |
1.0CA=(260mA) |
Ambient temperature 0~+60℃ |
|
|
1.1.11 Cell Internal Resistance(25℃) |
≤280mΩ |
AC Impedance 1KHz |
|
|
1.1.13 Soft pack Weight |
About 6.0g |
|
|
|
1.1.14Temperature range for storage |
less than 1 month |
-5~+45℃ |
Percentage of recoverable capacity 80﹪ |
|
less than 3 month |
0~+35℃ |
||
|
less than 1 year |
23±5℃ |
||
|
1.1.15 Open Circuit Voltage |
≥3.95V |
Measure with voltmeter. |
|
