China gypsum board machine 2023 new typs stainless steel 2-50 million SQM for sale

gypsum board machine 2023 new typs stainless steel 2-50 million SQM

Name: gypsum board machine 2023 new typs stainless steel 2-50 million SQM
Brand: HEBEI LVJOE MACHINERY MANUFACTURING GROUP CO.,LTD.

Price Negotiable

Price: USD400000

MOQ: 1 set

Delivery Time: 90 days

Brand: LVJOE

Product Description

1) Production capacity: 2 million ~50 million square meter per year.

2) Final product variety: Common paper faced plasterboard

Fireproof paper faced plasterboard,

Waterproof paper faced plasterboard.

3) Product specificati1on: Thickness from 6.5mm ~ 18mm

Length from 2400mm ~ 3600mm

Width from 1200~1220mm

4) Product quality: In conformity with standard of P.R.C GB/T9775-2008 paper-covered Plasterboard.

5) Fuel variety: Coal, fuel oil, natural gas, or others

Paper supply system

It adopts special pneumatic shaft and magnetic powder brake. The high accuracy paper connecting way and

high precision electro-hydraulic alignment device, along with the automatic marking device played very big roles

for shaping, and ensured the good appearance quality.

Gypsum powder supply system

It takes the exclusive impeller feeder and high precision weighing belt as the core of powder

feeding. Thus it ensured normal supply of the gypsum powder. Moreover, it contains series of

powder additive storages, discharging and metering feeding systems; glass fiber cutting and

its metering feeding systems.etc.

Forming system

The vertical mixer and the pneumatic forming device are made of special wearable stainless

steels which enhance the system’s wearable ability and prolonged its life span. The vertical

mixer got pin type, none-pin type and other types to choose.

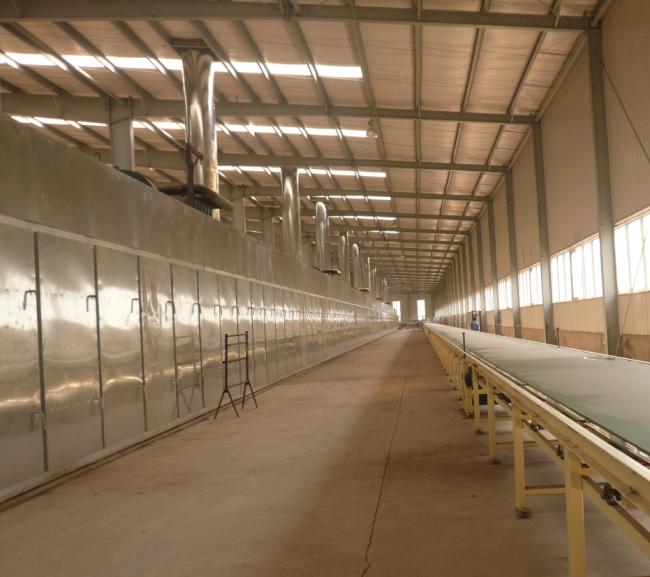

Drying system

The drying system is the core of the whole production line and it affects the quality and the

energy consumption of the products. It has interior muti-layer coiler heat releasing type,

external finned heat exchanging type, and hot air direct drying type

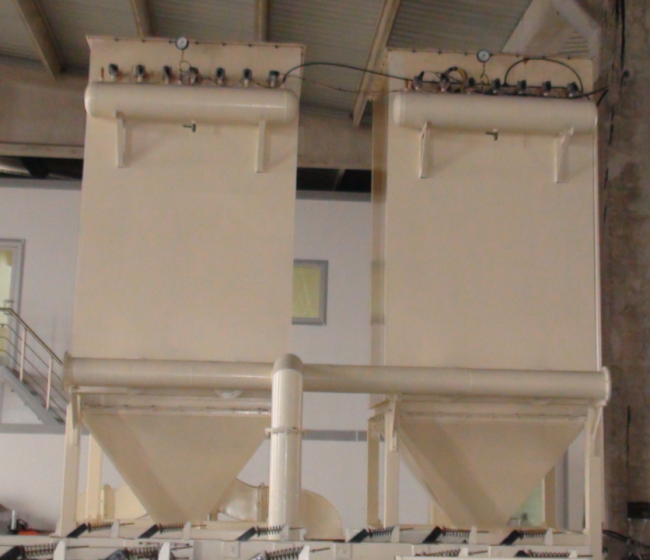

Dust removal system
This system uses the pulse blow bag dust collector, this kind of dust collector improves the dust removal effect, and makes it reach the environmental standard. In addition. It is convenient to deal with the dust and recycle. This system is good for the country and the people.

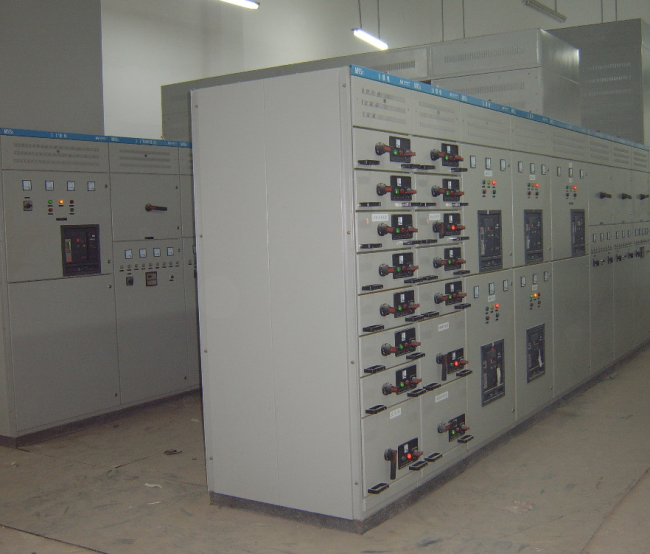

Control system

All of the three control stations adopt PLC control system. AC contactor and drive device chose reliable brand, and it also uses the contact-less equipments such as frequency converter,photoelectric sensor etc. Insured the reliable operation and realized the long-term and continuous fully automatic running of the gypsum board production line.
