1.Energy conservation, environmental protection and raw materials saving.
2.Self-diagnose function.
3.Stable and reliable performance,easy operation.
4.Having passed ISO9001,owned patents and honors for concrete block making machine.
5.Complete plan for plant setting up and all kinds of wastes recycling technologies.
6.The host machine adopts dynamic beam,high strength steel structure, four oriented, elevating frame can be adjusted according to the mold height simply and conveniently.
7.The guide column is made of super strength steel, the surface chromium plating has high strength and wear resistance.
8. The feeding way uses the fork to swing main materials and color pigments, can feeding quickly, high density.
9.The suspension type of the four directional aggregate feeder has small running resistance and low power consumption, and can solve the interference phenomenon of the scraping plate and the mold caused by the thickness error of the pallet.(patent NO.:ZL 2012 2 0394056.6)
10.The frequency conversion control system is adopted in the vibration system, and the speed of the motor is controlled by the low speed cruising technology, improve molding speed and product density.
11.The hydraulic pump & valve import from international brand. Adopt Yuken double proportional solenoid valve and integrated hydraulic pump station to adjust the oil speed, pressure and temperature, with the features of high-stability, high efficiency and energy-saving.
12.Pallet centering device (Patent No. ZL 2013 2 0386392.0) is provided to ensure that the pallet is positioned accurately on the vibrating platform, preventing the pallet from drifting and causing the product to move out of the pallet and be waste.
13.Adopting the internal drop pallet device to make the wet blocks leave the host machine smoothly and enter the conveying system, ensuring that the wet blocks are not affected by the impact between the pallets during the transportation, which greatly improves the rate of final products.
14.It can produces all kinds of blocks:hollow blocks,solid blocks,color road bricks,curbstones,etc.

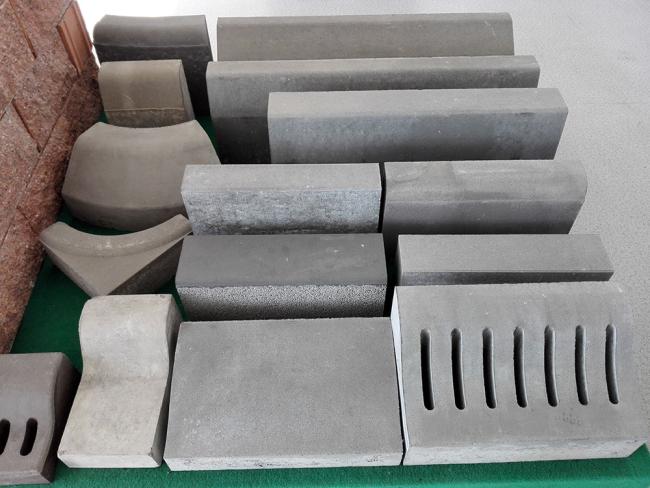

 Block Samples

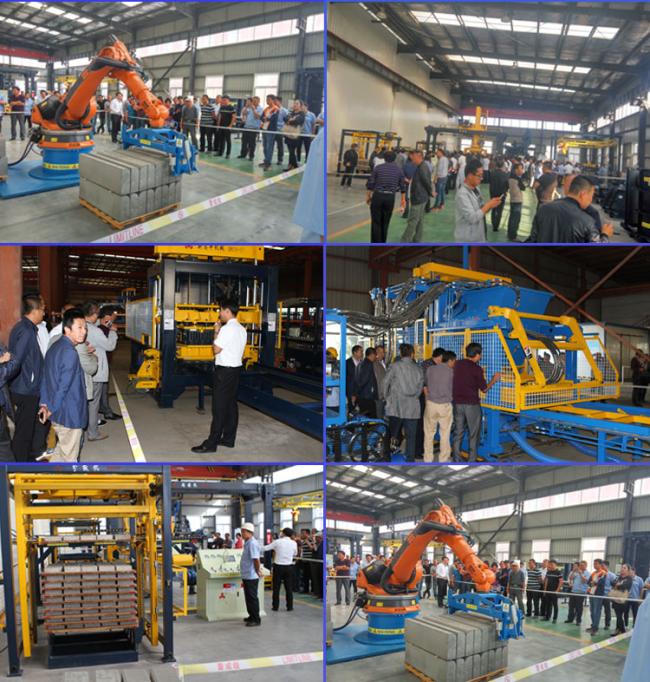

 Customer Show
