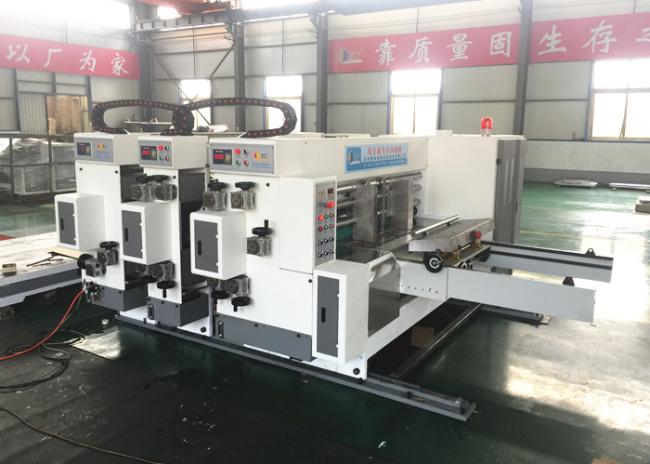

small carton lead edge feeder flexo double color printer slotter machine
small carton lead edge feeder double color printer slotter machine
I. Introduction
The machine adopts vacuum adsorption auxiliary paperboard feeding system (air volume is adjustable), with the function which can complete the slotting, angle-cutting, slitting, creasing etc. of corrugated paperboard in one time. Slotting depth of this machine is with electric adjustment, and equipped with the scale reading. Slotting phase adjustment is to the planetary gear structure, adopting the electric computer type 360 degrees adjustment, and the upper and lower slotting knife disc and creasing wheels can synchronous moving to left or right, (note: some special tool to adjust the movement), it is easy to use and maintenance, compact, which is a professional in view of the small carton slotting forming equipment .
II. Product Parameter
| Model | 2000mm | |
| Max machine speed | 60-120 pieces/min | |
| Max feeding size (L * W) | 1700mm*600mm | |
| Max printing size (L * W) | 1600mm*600mm | |
| Min feeding size (L * W) | 450mm*170mm | |
| Min slotting interval | Negative knife (A * B) | 150mm*50mm |
| Positive knife (A * B) | 80mm*80mm | |
|
Min box height (H) Min height of box (H) |
70mm | |
|
Outer size (L * W * H) Dimension (Length*Width*Height) |
3000mm*1700mm*1450mm | |
| Weight | 1700 KG | |
