Foot Switch Carton Box Stitching Machine Corrugated Box Stitch Machine
Foot Switch Carton Box Stitching Machine Corrugated Box Stitch Machine
Introduction:
Made by careful designing, the DZX series of stapling machine adopts the advantages of the same kinds of products at home and abroad. It has the advantages such as novel appearance, high speed, steady revolving, solid stapling, adopting base mold hard alloy, long using life and so on. It is the last line of corrugated carton forming. With the high speed rod, the bottom of the mold never wear, it is an essential part of carton manufacturer of specialized equipment.
| model | DZX-1400 | DZX-1600 |
| Stitch speed | 250nails/min | 250nails/min |
| thickness of stitching | 3/5/7ply | 3/5/7ply |
| length of arm | 1200mm | 1400mm |
| wire | 17#,18# | 17#,18# |
| weight | 600kg | 700kg |
| size | 1800x700x1800mm | 2000x700x1800mm |
| power | 0.37kw | 0.37kw |
Packaging:
The normal package is plastic film(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

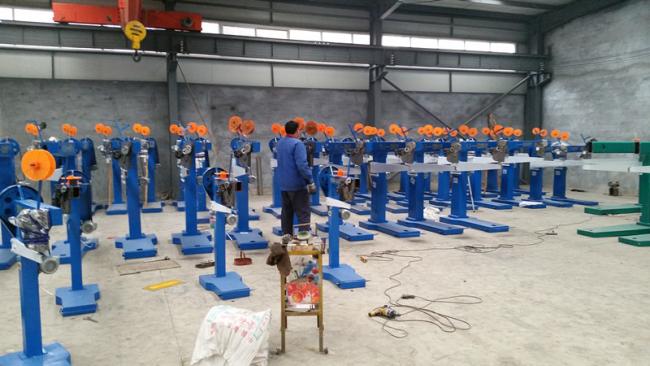

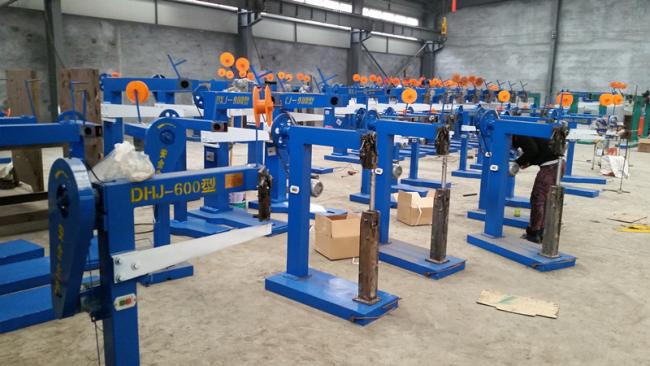

Picrure:
