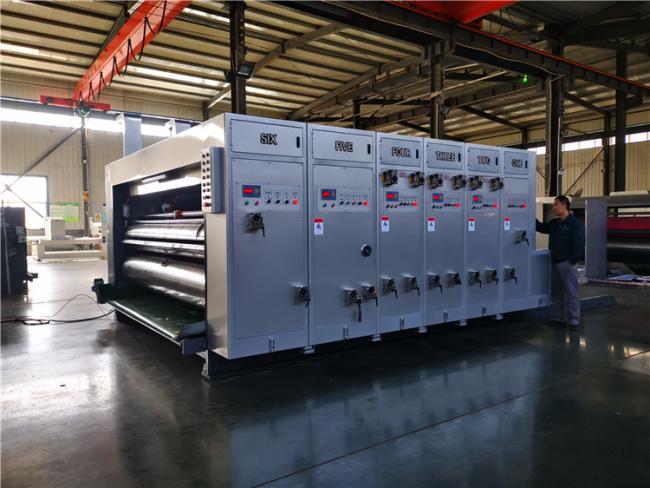

corrugated carton cardboard box printing rotary slotting

Corrugated Carton Cardboard Box Printing Rotary Slotting

Introduction:

1. Lead edge feeder:

a Suction feeder. Fan: 7.5 kw. Suction assisted paper feeding. The air volume controlled by frequency and can be adjusted according to the camber of the paperboard to keep feeding smoothly.

b four rows feeding wheels. Adopt Taiwan brand.

c Left and right baffle driven by screw rod electrical adjustment, fast and easy operate.

d Up and down clearance of front baffle manually adjust independent.

e Host adopt frequency control, start and running stable, save 30% energy.

f There is interlock control clutch with die-cutting unit, to realize sudden stop, stop feeding and recover feeding, and every units jog.

g Back baffle adjustment manually.

h Paper skip feeding device. (It can feed skipped or continuously). Lift paper and drop paper adopt cylinder to promote movement.

i Feeding counter, which set and display the production quantity.

K dust clean device.

2. Separation and combination of the machine:

a Control of separation and combination of machine units is electrically, with alarm to keep the safety of

operating personnel.

b There is safe clutch on the transmission shaft, to avoid damage to the machine when mis-operation(the host can not work when unlock.)

c Pneumatic interlock device.

d Host motor start protect device.

3. Roller of feeding paper:

a Outer diameter of up roller : Φ155mm. Seamless steel, covered with bearing rubber and treated with balance correction.

b Outer diameter of down roller: Φ155mm. Hard chrome-plated.

c Feeding roller clearance dial adopt bipolar self-locking worm gear body adjusted manually. Use

eccentric gear to adjust clearance, with scale.

Technology Parameter:

RFQ:

1.Q: Are you a factory or trading company?
A: We are a manufacture which is specialized in the production of various kinds of carton equipments for 20 years.(with export license)

2.Q: Where is your factory located? How can I visit here?
A: Our factory is located in zhuwa industrial area south of Dongguang county, Cangzhou City, Hebei province, China. It is about 2 hours from Jinan International airport by car. And it is about 1 hour from Cangzhou high-speed rail station. We can pick you up if you need, welcome to visit our factory.

3.Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipments.

4.Q: How does your factory do regarding quality controlling?
A: We have one year warranty for whole machine, not including easy-damage parts.

Any questions, contact with me!
