3 Ply 5 Ply Corrugated Carton Gluing Machine 2800 X 1515mm Max Feeding Size
3 ply 5 ply corrugated carton glue machine
Main Structure :

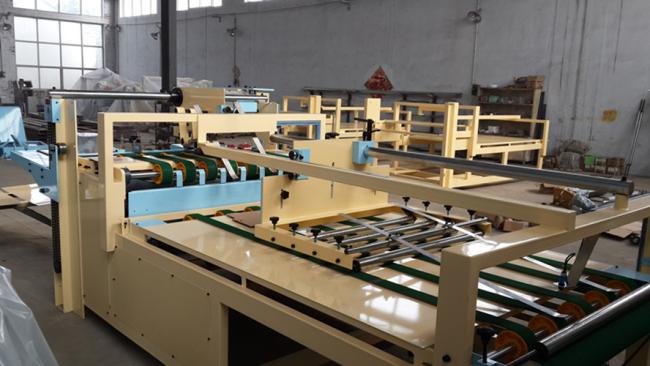

BZX 2800 semi automatic gluing machine is made of main frame and two little conveyors .
Main frame : frame , elevating working table , forepart conveyor , forepart correcting unit , middle conveyor , middle pressing device , end product side conveyor and electrical control device .
Technological Parameter
| Parameter | specification |
| max size ( length + width )*2 | 2800mm |
| min size ( length + width )*2 | 340mm |
| max size ( width + height ) | 1515mm |
| min size ( width + height ) | 260mm |
| the height of feeding | 1000mm |
| motor power | 4.0 kw |
| the dimension of machine | 5.5m * 2.5m * 1.5m |
| the weight of machine | 1500 kg |
| working speed | 60 m/min |
Applicable Scope And Characteristics :
v The equipment applies to the gluing for all kinds of cardboard and corrugated paper .
v Easy to operate without experience .
v One minute quickly change the size .
v The min size of width adding height is about 260mm .
v It is the ideal equipment for the carton box manufacturers .
