Corrugated Box Making Machine , Auto Folder Gluer Machine 1000 X 720 Mm Max Working Size
Bouble Pieces Corrugated Cardboard Carton Folder Gluer Machine
Machine features:
The machine adopts the double frequency to adjust the speed , PLC central control, and matches with the high speed clutch, accurate operation control. The feeding system is equipped with powerful suction feeding, can transport the single and double pieces of paper. When the machine do two pieces of paper forming carton , the two pieces of paper can be glued in the dynamic molding (hot melt adhesive middle), three sides positioning and improving the accuracy . When the two pieces of paper joint together, the worker fold to form, at the same time the worker can manually correct the cross problem which carton was creased and cross with corrugated line, then enter into the pressing belt in the bottom of the machine and final forming. This machine only need two operation workers . The paper processing range of this machine : A - E corrugated paperboard.
Machine technology parameter:
| model | SPHX-2000 |
| max working size | 1000x720mm |
| min working size | 450x320mm |
| max speed | 86m/mi |
| power | 5.8kw |

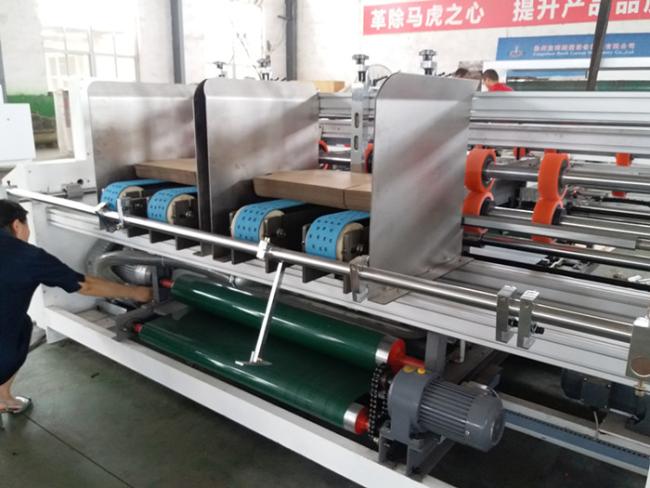

Machine pictures:

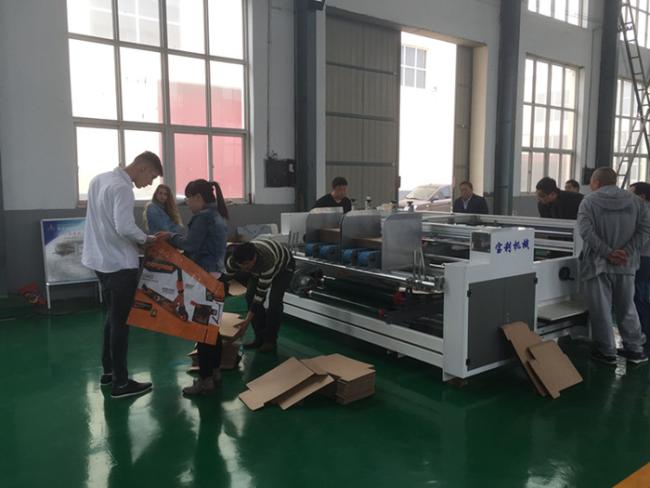

Customer picture:
