Carton Box Package Making Partition Assembler / Corrugated Partition Machine

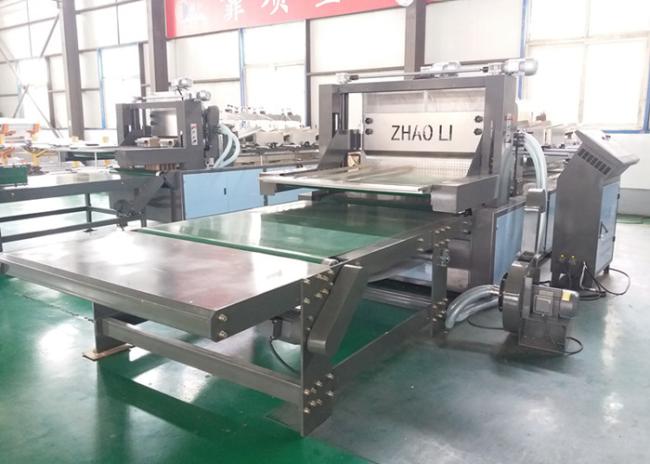

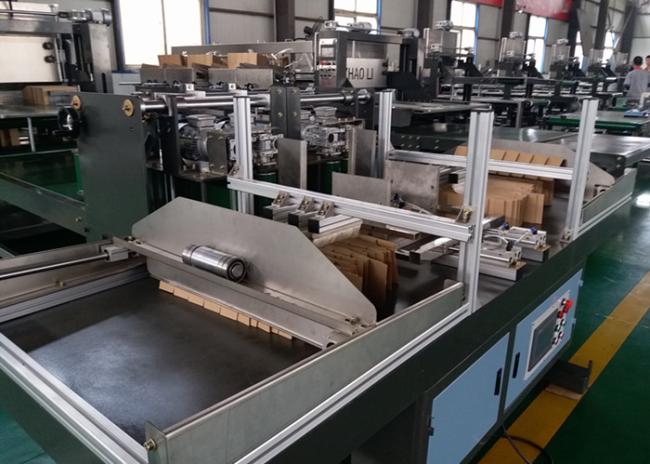

Automatic Corrugated Cardboard Partition Assembly mMachine
Application and characteristics
ZL900X500 6N serious automatic partition assembler machine is optimized to be a new partition assembler devices on the basis of absorbing the advantage of equipment at home and abroad in our factory. The equipment takes the place of the traditional manual operation made, automatic complete insertion of clapboard, saving labor costs, effectively improve the production efficiency at the same time. It is the ideal packing equipment of fruit and vegetable, glass ceramic, plastic and so on.
Technology parameter:
| Technological parameter | |||
| power | 10kw | Not include air compressor | |
| Host belt speed | 15-30m/min | ||
| Clapboard combining form | 3*(1~n) | In double working station | |
| Longitudinal clapboard feeding track No. | 6 | ||
| Horizontal clapboard feeding track No. | 1~12 | ||
| Clapboard size | Length L=120~450mm | Clapboard thickness 1.5~7mm | |
| Height H=75~300mm | |||
| Width W=120~450mm(double station) | Width W=120~900(single station) | ||
| Lattice space C=50~150mm | |||
| Lattice space D=30~150mm | |||
| Working speed | 30-60groups/min | Working speed is connected with clapboard size and clapboard combining form | |
| Machine weight | 3000kg | ||
| Overall dimension | 5500x2200x2000mm | ||
|
Note: when width of clapboard is greater than 450mm, the machine just can work in single station. Air compressor or air compressor station requirement: 6kgf/cm². |
|||
| Power supply | Can be customized | ||
| Total power | 8.0 - 9.0 kw | ||
| Design speed | 60 sets/min (double station speed) | ||
| Economical speed | 40 sets/min (double station speed) | ||
| Air source pressure | 0.6 - 1.0 MPa | ||
