Three Layer Corrugated Paperboard Production Line 60 - 80m / Min Economic Speed

3 Layer Automatic Corrugated Cardboard Production Line Mahcine

※ main technical parameters and requirements in production line type:

WJ100-1800-I type three layer corrugated paperboard production line:

The maximum production width of the corrugated cardboard:1800mm

Design speed:100m/min

Economic speed:60-80m/min

note:Production line speed test paper should meet the following requirements:(the surface temperature of the equipment is not less than 172℃)

﹡Paper rating of not less than B grade ﹡Paper moisture content of about:11%±2%

﹡top paper:100—250g/m² ﹡core paper:100--250g/m²

﹡corrugated paper:100—200g/m²

1. Flute-type combination:A ,C, B, E(as customers’ requirement)

2. Steam the necessary requirements:

3. amount of steam 2500—3000Kg/Hr ﹡the highest pressure:1.2Mpa

4. common pressure:0.8-1.1Mpa

5. power supply:380V 50Hz Three-phase four-wire system

6. equipment installed total power:about120KW

7. The actual power consumption:about 60KW(full speed)

8. equipment covers:about40m×10m×5m(Specific length of foundation Figure prevail)

9. Equipment out of paper orientation:According to the user to determine the transmission plant set left or right position

10. Equipment applicability,Available in A, B, C class domestic or imported paper Paper

package:

plastic film for main parts, wooden case or carton box for small parts, then loaded in 20' and 40' container, then fixed with container.according to customer requirements. according to customer requirements.

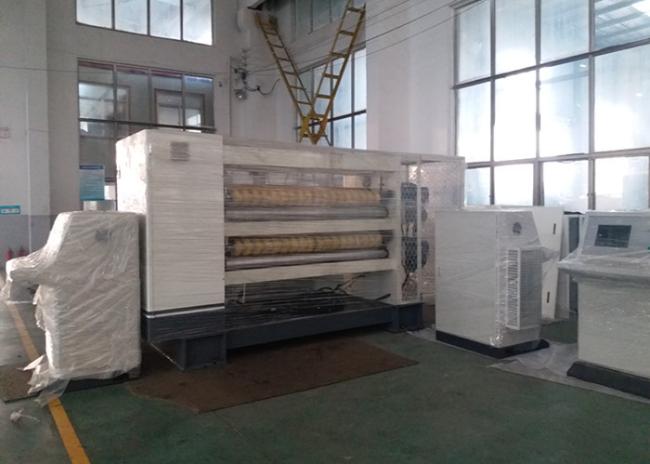

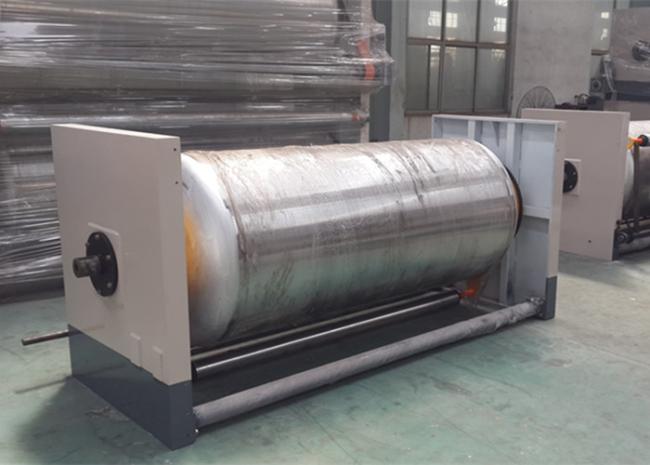

picture:
