2 Layer Automatic Corrugated Cardboard Production Line 30 Meters Length

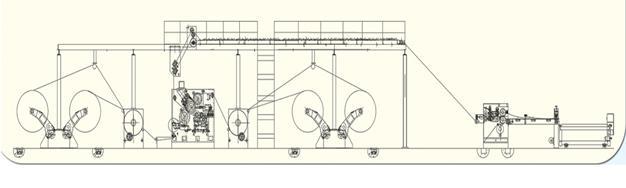

2 layer automatic corrugated cardboard production line ​

this machine is used to make the 2 ply corrugated cardboard , using the original paper or kraft paper rolls .

it is composed of a serious of machines with different functions , such as :

1. electric / hydraulic mill roll stand , for carry the origin paper rolls .

2. single facer , used to make 2 layer corrugated cardboard

3. preheater , to raise the paper temperature , in order to improve cardboard quality and production line

4 . ​slitter & cut off machine , to cut off the cardboard in pieces according to order size . which be with computer control , can save 200 orders , or electric adjustment (can be optional).  this type of machine is the new products with stable running , high speed , and easy operation . now it is very popular by our customers . ​

Structural features:

1,Store 200 groups of orders, the man-machine interface, the screen displays information can be found at any time, modify, append, cancel.

2,Electric control knife.

3,Cutting Machine adopts inlaid front steel blade structure, hardened gear grinding backlash-free transmission, high precision and long life.

4,Host wall of gray cast iron, rigidity, vibration resistance.

5,stacking adopt gantry platform lifting, Reach a certain number of right-angle transverse,Three sections of the paper,Some hair design paper roll straight bend output,Second overlapping fixed-length buffer,three part points Pneumatic separate ,Accelerated export cardboard.Improve working efficiency. The maximum length of stacked is 1.6 meters .This machine is suitable for efficient production color printing business.

6,Electric control, for a single time 3-8 seconds.

7,Using thin tungsten alloy steel knife,blade sharp,the using life is more than 8000000 meters.

8,Brothers for computer-controlled, automatic or manual knife sharpener can be divided trimming knife edge, increase productivity.

9,Imported synchronous drive system, precision accurate, long life, low operating noise.

10,From high-quality imported industrial computers and high-performance programmable controller configuration, lower computer control system.
