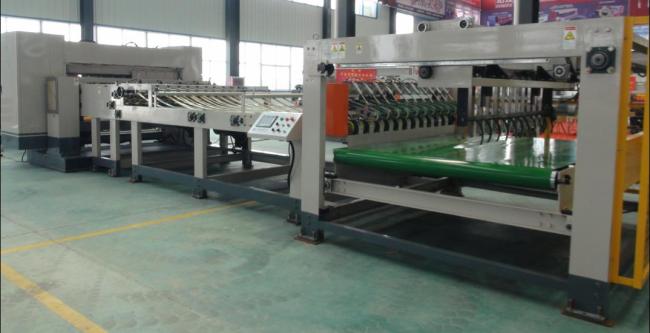

Single Corrugated Cardboard Machine Electric Blade Adjustment 1800mm Working Width

single corrugation 2 ply cardboard manufacturer machine group ​ ​

this machine is used to make the 2 ply corrugated cardboard , using the original paper or kraft paper rolls .

it is composed of a serious of machines with different functions , such as :

1. electric / hydraulic mill roll stand , for carry the origin paper rolls .

2. single facer , used to make 2 layer corrugated cardboard

3. preheater , to raise the paper temperature , in order to improve cardboard quality and production line

4 . ​slitter & cut off machine , to cut off the cardboard in pieces according to order size . which be with computer control , can save 200 orders , or electric adjustment (can be optional).  this type of machine is the new products with stable running , high speed , and easy operation . now it is very popular by our customers . ​

Technical parameters:

1, The maximum working width:1800mm

2, operation direction:left or right(Determined in accordance with customer plant)

3, The maximum mechanical speed:100m/min

4, Mechanical configuration:Computer spiral knife crosscutting

5, Cutting length:300-1800mm

6, Minimum slitting width:180mm

7, Precision Cutter:±1mm(Uniform) ±1.5mm(Non-uniform)

8, 5 groups ￠200blades
