Automatic Carton Clapboard Partition Inserting Machine 30 - 50 Groups / Min Speed
Price:
Negotiable
MOQ:
1 set
Delivery Time:
1 - 1.5 months
Brand:
ZHAOLI
Product Description

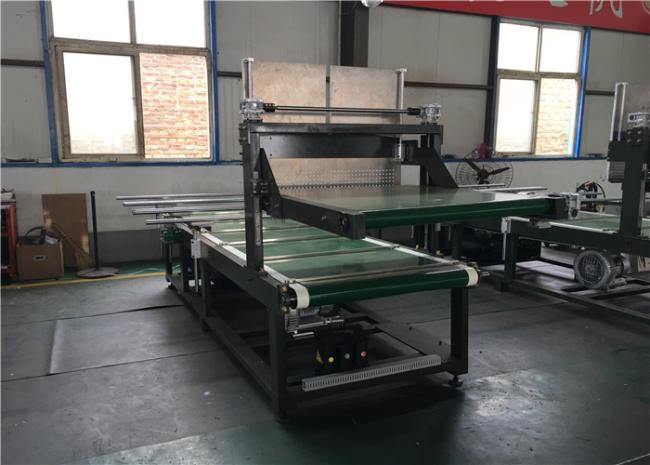

automatic carton clapboard partition inserting machine
introduction :
this machine is used to make the clapboard insert to each other . to packing the bottles , fruit , etc .
| Power supply | 380V / 50Hz | 3 phases - 4 lines |
| Power | 10 KW | Not including the air compressor |
| Host belt speed | 15-30m/min | |
| Clapboard combining form | 3 * (1~N) | In double working station |
| Longitudinal clapboard feeding track number | 6 | |
| Horizontal clapboard feeding track number | 1-12 | |

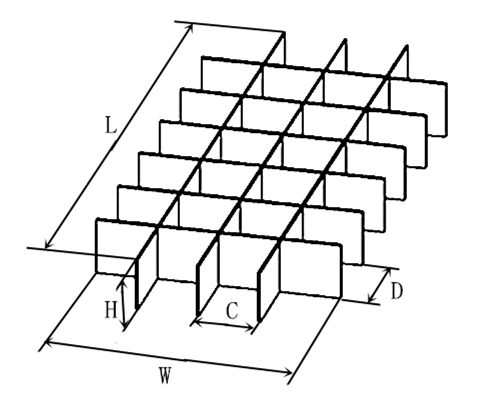

| Clapboard size | Length L=120-500mm | Clapboard thickness 1.5-7mm |
| Height H=75-300mm | ||
|
Width W=120-450mm (double station) |
Width W=450-900mm (single station) |
|
| Lattice spacing C=50~150mm | ||
| Lattice spacing D=40~150mm | ||
| Working speed | 30~60 groups / min | Working speed is connected with clapboard size and clapboard combining form . |
| Machine weight | 3000 KG | |
| Overall dimension | Length * Width * Height : 5500mm * 2200mm * 2000mm | |
|
Note : when the width of clapboard is greater than 450mm , the machine just can work in single station . Air compressor or air compression station requirement : 6kgf/cm2 . For the special type of clapboard , we can customize the machine as client’s wish . |
||
