Professional Flat Carton Die Cutting Creasing Machine 4200 Sheets / H Working Speed
automatic flat carton die cutting creasing machine
Machine Introduction:

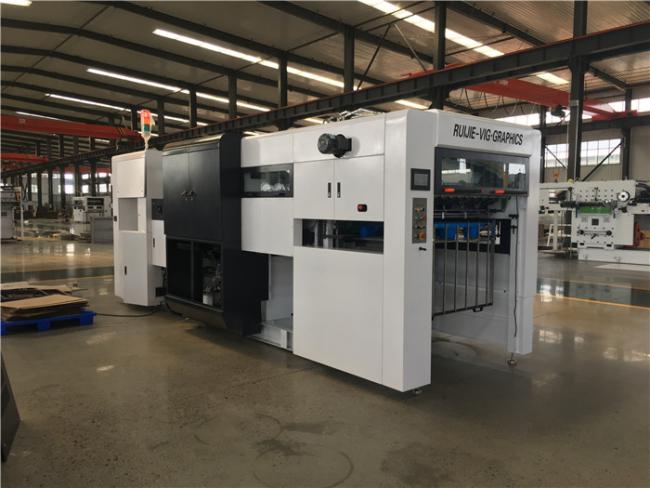

The MY serious Automatic Die Cutting and Creasing Machine is the main equipment for making high-grade color box, plug and different shapes of ink cartons.
The machine adopts Anchuan servo system, Gogol four axes motion controller, non-pressure feeding system, high strength gripper teeth row, whole swing front guide, automatic pushing guide, high precision interval structure, pneumatic locking plate. Pneumatic clutch, overload protector, automatic paper collecting, makes our machine has a short paper feeding distance, positioning correctly, paper collecting in order, can also do non-gripper die cutting.
Computer control makes the whole machine running automatically, man-machine interface display the working condition and trouble dealing method. Key components, control systems and fasteners are imported and carefully assembled to ensure the safety and reliability of the machine. With many sensors and protection devices to ensure machine working and workers safety.
Technical Parameters:
| Item | Parameters | Parameters |
| Model | MY-1500 | MY-1650 |
| Die cutting type | Pressed flat die cutting(Lower side is movable while upper side is unmovable) | Pressed flat die cutting(Lower side is movable while upper side is unmovable) |
| Max paper transmitting size | 1500*1100mm | 1650*1200mm |
| Min paper transmitting size | 450*550mm | 500*550mm |
| Max die cutting size | 1480*1080mm | 1630*1180mm |
| Min gripper size | 8mm | 8mm |
| Max die cutting pressure | 350N/cm² | 350N/cm² |
| Paper processed | Corrugated board ≦8mm | Corrugated board ≦8mm |
| Die cutting precision | ±0.1mm | ±0.1mm |
| Max die cutting speed | 4200 sheets/h | 4200 sheets/h |
| Max feeding pile height | 1400mm(above the level) | 1400mm(above the level) |
| Min feeding pile height | 1300mm(above the level) | 1300mm(above the level) |
| Main motor power | 11 kw | 11 kw |
| Total power | 33.6 kw | 33.6 kw |
