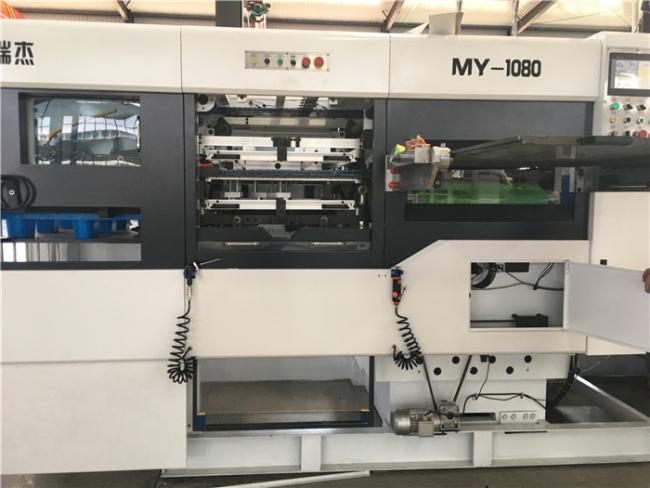

Automatic Corrugated Carton Creasing And Die Cutting Machine High Precision
automatic corrugated carton creasing and die cutting and stripping machine
Features:
Lead-form paper feeding part.
Non-pressure paper transmitting structure makes the color carton no-scratch; Anchuan servo system provide sufficient energy constantly, makes the paper transmitting more smoothly; Four axes motion controller collect the rotation angle of host timely, makes the machine high precision transmitting whenever machine speed up or down by inspection and detecting and rectifyimh the photoelectric.
Positioning part: the front guide, the side guide.
Front guide : The overall swing front swinging side guide have a small impact on the paper edge, high positioning precision, with four sets of precision fiber switch(Taiwan Riko brand) to check paper in place and avoid paper wasting.
Side guide : You can choose side guide based on different products, no need to replace components, easy and quickly to adjust.
Technical Parameters:
| Item | Parameters | Parameters |
| Model | MY-1500 | MY-1650 |
| Die cutting type | Pressed flat die cutting(Lower side is movable while upper side is unmovable) | Pressed flat die cutting(Lower side is movable while upper side is unmovable) |
| Max paper transmitting size | 1500*1100mm | 1650*1200mm |
| Min paper transmitting size | 450*550mm | 500*550mm |
| Max die cutting size | 1480*1080mm | 1630*1180mm |
| Min gripper size | 8mm | 8mm |
| Max die cutting pressure | 350N/cm² | 350N/cm² |
| Paper processed | Corrugated board ≦8mm | Corrugated board ≦8mm |
| Die cutting precision | ±0.1mm | ±0.1mm |
| Max die cutting speed | 4200 sheets/h | 4200 sheets/h |
| Max feeding pile height | 1400mm(above the level) | 1400mm(above the level) |
| Min feeding pile height | 1300mm(above the level) | 1300mm(above the level) |
| Main motor power | 11 kw | 11 kw |
| Total power | 33.6 kw | 33.6 kw |
