Fully Automatic Corrugated Carton Creasing And Die Cutting Machine One 40GP Container

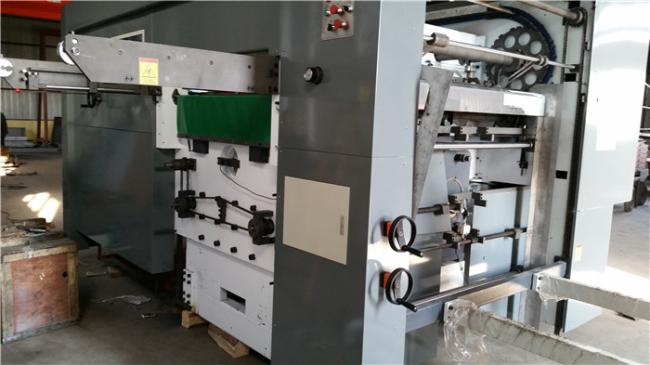

MY-1300 fully automatiic corrugated carton creasing and die cutting machine
Features:
Paper collecting part: Collecting paper automatically and quantitatively.
Back aligning paper, side aligning paper to ensure the automatic paper feeding orderly, the structure of paper collecting machine is simple, quick operation. Back aligning paper adjusted by electric, three times faster than the manual operating, the operation is simple and convenient.The operator can monitor the back aligning paper in front of machine.Back aligning paper equips with double detection switch to monitor paper in order. It can also take samples when machine running.It will alarm automatically when paper collecting reach the order to remind the operator replace the paper collecting platform.
Quantitative paper: Can set the arbitrary value from 10 to 9999, it will off automatically when the paper reaches the set value.
Technical Parameters:
| Item | Parameters | Parameters |
| Model | MY-1500 | MY-1650 |
| Die cutting type | Pressed flat die cutting(Lower side is movable while upper side is unmovable) | Pressed flat die cutting(Lower side is movable while upper side is unmovable) |
| Max paper transmitting size | 1500*1100mm | 1650*1200mm |
| Min paper transmitting size | 450*550mm | 500*550mm |
| Max die cutting size | 1480*1080mm | 1630*1180mm |
| Min gripper size | 8mm | 8mm |
| Max die cutting pressure | 350N/cm² | 350N/cm² |
| Paper processed | Corrugated board ≦8mm | Corrugated board ≦8mm |
| Die cutting precision | ±0.1mm | ±0.1mm |
| Max die cutting speed | 4200 sheets/h | 4200 sheets/h |
| Max feeding pile height | 1400mm(above the level) | 1400mm(above the level) |
| Min feeding pile height | 1300mm(above the level) | 1300mm(above the level) |
| Main motor power | 11 kw | 11 kw |
| Total power | 33.6 kw | 33.6 kw |
