Mill Roll Stand Corrugated Carton Machine Two Stage Inflatable Paper Carrying Head
Price:
Negotiable
MOQ:
1 set
Delivery Time:
30 days after receive deposit
Brand:
ZHAOLI
Product Description
Corrugated Cardboard Hydraulic Mill Roll Stand Corrugated Carton Machine
Feature Corrugated Cardboard Hydraulic Mill Roll Stand Corrugated Carton Machine:
1. Symmetric structure can install two bundle of paper tube at the same time, can change paper assignments without stopping .
2. Adopts full hydraulic drive to complete the original paper clamping, loosen, move on to match and translation to right & left these motions and so on, original paper lifting adopts hydraulic drive.
3. With two-stage inflatable paper carrying head , paper carrying head is 34 inch double type.

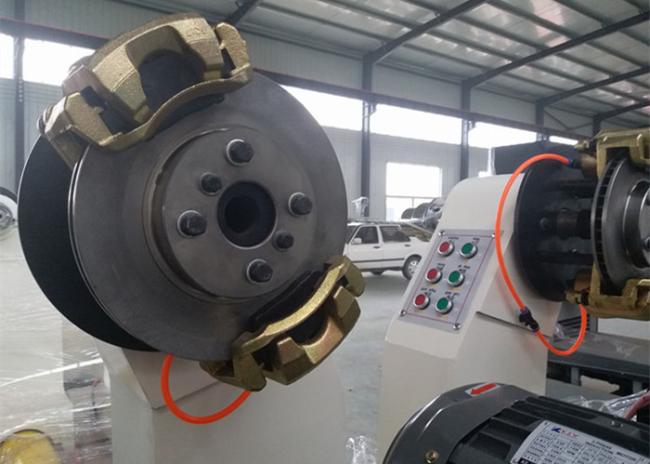

Multipoint pneumatic brakes.
| Technology parameter | |
| Original paper shaft motion type | full hydraulic type motion |
| Working size | 1600mm |
| Paper carry width | max 1600mm, min 800mm |
| Paper carry diameter | max Φ1500mm |
| Max loading weight for single side | max 2000 Kg |
| Main roller diameter of paper shaft | Φ242mm |
| Air source working pressure | 0.6 - 0.8 Mpa |
| Working power supply | 380v/3phase/50hz |
| Machine dimension | 3.8x1.6x1.65m |
| Hydraulic System Parameter | |
| Working pressure | 16-18 MPa |
| Working range of hydraulic cylinder (lifting) | Φ125 x440 mm |
| Working range of hydraulic cyliner (clamping/translation) | Φ80 x800 mm |
| Motor power in hydraulic station | 5KW. Short-term (S2) working pattern |
| The rated voltage and frequency | 380V , 50Hz |
| Solenoid valve working power in hydraulic station | 220 V , 50 Hz |
Machine pictures Corrugated Cardboard Hydraulic Mill Roll Stand Corrugated Carton Machine:
