2500kg Weight Corrugated Cardboard Machine / Carton Box Making Machine
Price:
Negotiable
MOQ:
1 set
Delivery Time:
30 days after receive deposit
Brand:
ZHAOLI
Product Description
Corrugated Cardboard Production Line Hydraulic Mill Roll Stand Corrugated Carton Machine
Feature Corrugated Cardboard Production Line Hydraulic Mill Roll Stand Corrugated Carton Machine:
1. Symmetric structure can install two bundle of paper tube at the same time, can change paper assignments without stopping .
2. Adopts full hydraulic drive to complete the original paper clamping, loosen, move on to match and translation to right & left these motions and so on, original paper lifting adopts hydraulic drive.
3. With two-stage inflatable paper carrying head , paper carrying head is 34 inch double type.
Multipoint pneumatic brakes.
| Technology parameter | |
| Original paper shaft motion type | full hydraulic type motion |
| Working size | 1600mm |
| Paper carry width | max 1600mm, min 800mm |
| Paper carry diameter | max Φ1500mm |
| Max loading weight for single side | max 2000 Kg |
| Main roller diameter of paper shaft | Φ242mm |
| Air source working pressure | 0.6 - 0.8 Mpa |
| Working power supply | 380v/3phase/50hz |
| Machine dimension | 3.8x1.6x1.65m |
| Hydraulic System Parameter | |
| Working pressure | 16-18 MPa |
| Working range of hydraulic cylinder (lifting) | Φ125 x440 mm |
| Working range of hydraulic cyliner (clamping/translation) | Φ80 x800 mm |
| Motor power in hydraulic station | 5KW. Short-term (S2) working pattern |
| The rated voltage and frequency | 380V , 50Hz |
| Solenoid valve working power in hydraulic station | 220 V , 50 Hz |
Package:
plastic film for main parts, wooden case or carton box for small parts, then loaded in 20' and 40' container, then fixed with container.according to customer requirements. according to customer requirements.
plastic film for main parts, wooden case or carton box for small parts, then loaded in 20' and 40' container, then fixed with container.according to customer requirements. according to customer requirements.

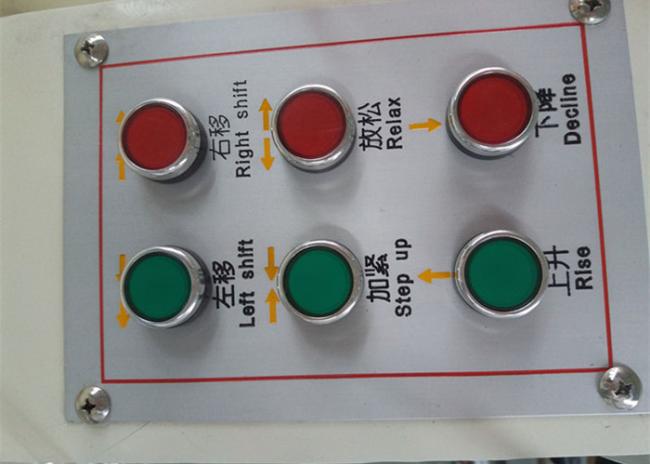

Machine pictures Corrugated Cardboard Production Line Hydraulic Mill Roll Stand Corrugated Carton Machine:

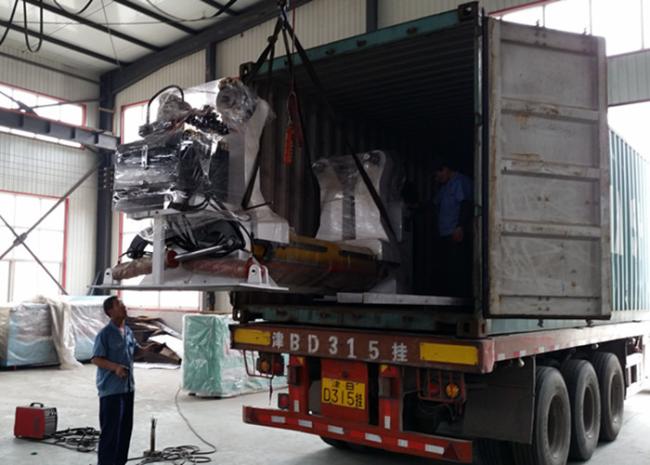

Package picture:
