Auto Lamination Machine / Paper Sheet Lamination Machine Easy Operation

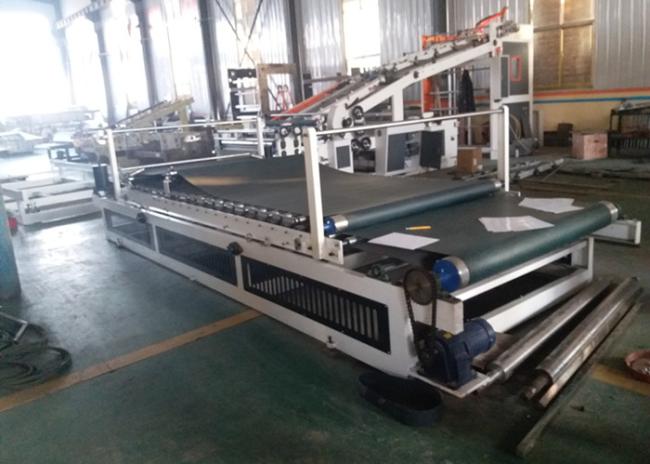

Automatic High Speed 3layer Corrugated Cardboard Flute Laminating Machine

Machine introduction Automatic High Speed 3layer Corrugated Cardboard Flute Laminating Machine:

1. This automatic flute laminating machine adopts chain pusher and back registion system together with spring blade side lay and vacuum sucking conveying system make this series of machine fit a larger of paper, hing precision while remaining the features of easy operation and maintenance.

2. This machine glue roller adopts high design, match with anliox roller and rubber roller, the uniformity of the coating was improved greatly, increase the intensity of draping. Reduce the cost of the customer production.

3. Balance-tested rollers, tight assembling technique, plus timing and tooth belt driving mechanic system makes the machine run at low noise with high precision.

4. The machine adopts automatic glue supply and recyclable glue circulating system.

5. Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction and stable. The electric parts used are all world wide available brand or well-known Chinese brand.

6. All material are inspected according to ISO-9001 standard and key parts such as the harmonic gear and bearings are imported ones.

The bottom sheet for this machine can be A,B,C,D,E,F flute corrugated sheet. It can do 3,5 ply board to sheet lamination or board to board lamination. The range for top paper can 200-600gsm with top paper advance or alignment function.
