Slotting And Creasing Rotary Slotter Machine With Planet Gears Structure

Automatic Corrugated Carton Box Making Cutting Creasing and Rotary Slotter Machine

Machine features Automatic Corrugated Carton Box Making Cutting Creasing and Rotary Slotter Machine

This machine adopt the vacuum adsorption paper feeding type, can once complete to slot, slice the corner, press the line etc, front, behind, side baffle plate and slot depth adjust by manual, append measurement reading, (according to customer need, can optional electric for PLC control system), slot phase adjustment by planet gear structure, adopt electric digit 360degrees adjustment, photoelectric counter, it is easy use, maintenance and high automatic degree(holding hole punching unit and punching unit are optional at request.)

1.Slotting knife. Alloy steel. After heating and grinding treatment. Tooth shape
blade. Hardness and toughness are all good.
2. Trimming knife. Alloy steel. After heating and grinding. Knife-edge is sharp. High precision.
3. Creasing wheel and slotting knife block are adjusted electrical machinery Conjoined.
4. Planet gears structure.
5. Slotting phrase is adjusted electrically in 360° . (It can be adjusted when running or stopping.)

Technology Parameter Automatic Corrugated Carton Box Making Cutting Creasing and Rotary Slotter Machine

Package Automatic Corrugated Carton Box Making Cutting Creasing and Rotary Slotter Machine:

plastic film for main parts, wooden case or carton box for small parts, then loaded in 20' and 40' container, then fixed with container.according to customer requirements. according to customer requirements.

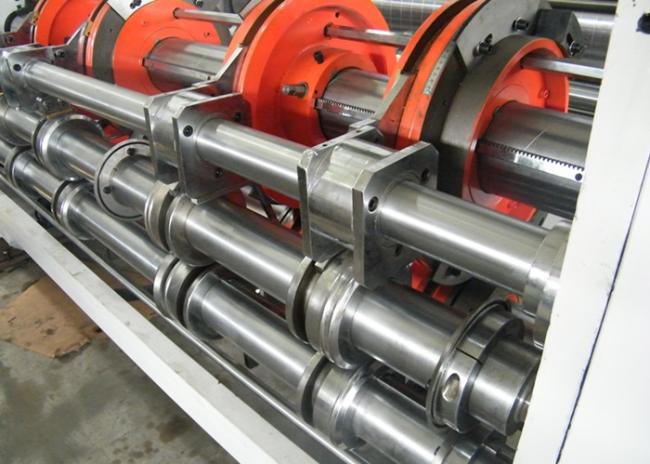

Machine Picture Automatic Corrugated Carton Box Making Cutting Creasing and Rotary Slotter Machine
