Easy Maintenance Rotary Slotter Machine 60 - 90 Sheets / Min Working Speed

small carton auto kick back feeding rotary slotter slotting machine

Introduction

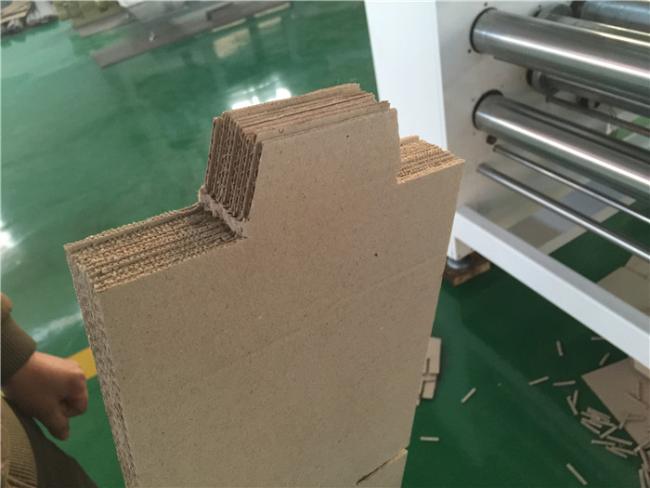

The machine adopts vacuum adsorption auxiliary paperboard feeding system (air volume is adjustable), with the function which can complete the slotting, angle-cutting, slitting, creasing etc. of corrugated paperboard in one time. Slotting depth of this machine is with electric adjustment, and equipped with the scale reading. Slotting phase adjustment is to the planetary gear structure, adopting the electric computer type 360 degrees adjustment, and the upper and lower slotting knife disc and creasing wheels can synchronous moving to left or right, (note: some special tool to adjust the movement), it is easy to use and maintenance, compact, which is a professional in view of the small carton slotting forming equipment

electric adjust the box height and phase , manual adjust the movement of blades , don't need to install , very convenient , suitable for small workshop to produce the small carton .

Product Parameter
