Rotary Slotter Creasing Corner Cutting Machine Full Steel Processed Slotting Knife Discs
just for small corrugated carton automatic rotary slotter creasing corner-cutter machine
electric adjust the box height and phase , manual adjust the movement of blades , don't need to install , very convenient , suitable for small workshop to produce the small carton .
Main Structure And Function Characteristics
1. Paper feeding roller adopts patterned roller, feeding roller pressure adopts eccentric wheel adjustment with left and right eccentric wheels, can adjust the pressure synchronously .
2. Back kick feeding department adopts both sides and back baffles to fasten paperboard, to avoid the slotting error to make upper paperboard misplace when pushing paperboard, can fit to each kinds of paperboard with different quality , and sending paper stable and accurate.

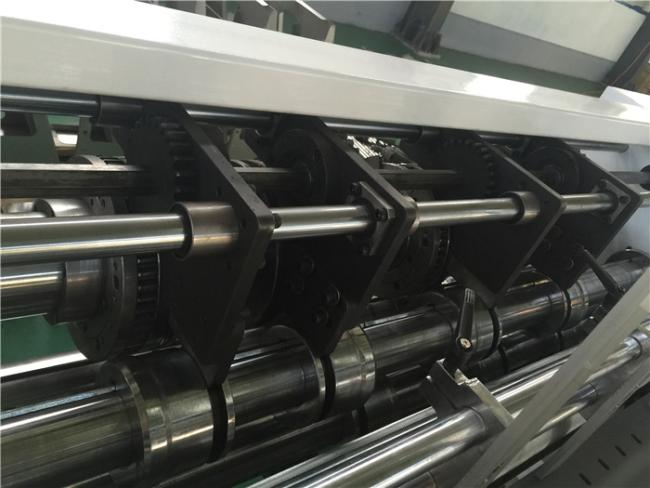

3. Slotting knife discs adopt full steel processed , slotting knives adopt sawtooth arc-shaped semicircle knives to slot and remove the waste, paperboard get into slitting roller after slotting, slitting knives cut both sides of the paperboard neatly . ( note : pressing wheel and slitting knives are installed in same roller, convenient to adjust )
Product Parameter
| Model | 1600 | |
| Machine max speed | 80-100 pieces/min | |
| Max feeding size (L×W) | 1600mm×600mm | |
| Min feeding size (L×W) | 500mm×180mm | |
| Min slotting interval | Negative knife (A×B) | 150mm×50mm |
| Positive knife (A×B) | 80mm×80mm | |
| Min height of box (H) | 70mm | |
| Dimension (Length*Width*Height) | 2700mm×1500mm×1280mm | |
| Weight | 1500 KG | |
