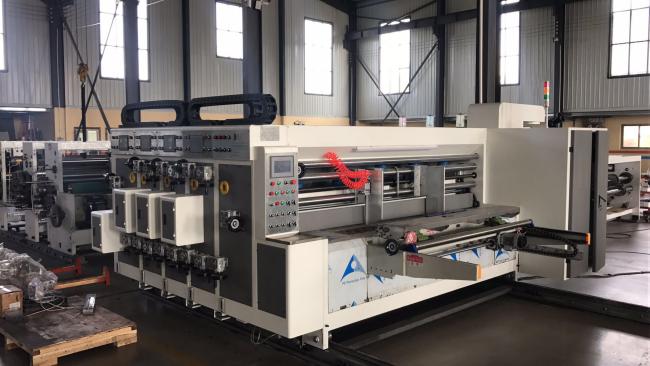

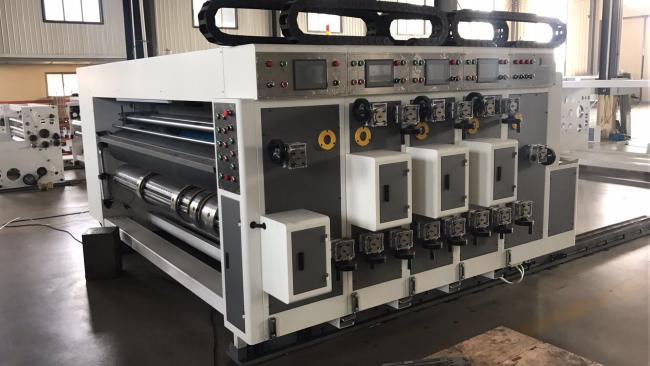

Small Type 2200mm Flexo Printing Slotter Machine For Make Carton Box

The machine adopts gear thickness of 50 mm chrome steel forging a 40 with, gear processing is completed in the high frequency quenching hardness can reach 45-48 HRC.
The machine is equipped with auxiliary vacuum adsorption front paper feeding system, feeding way has a one-time corrugated board printing, slitting, die-cutting, etc.
Computer control department USES multiple sets of communication type adjustment, the host computer adopts PLC control system, can be individually controlled paper, printing, slitting, die-cutting, print roller device equipped with hangs Taiwan belongs to zero, and is equipped with foot switch anyway.

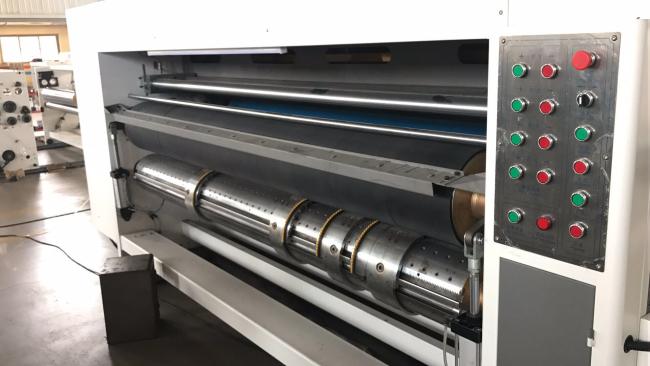

2. The slot of preloading double line pressing wheel, the machine slot depth and the 360 ° phase electric for computer, slotting cutter and line pressing wheel preloading round about moving to dynamic adjustment screw electric point, with the scale reading.
Slotting phase adjustment to the planetary gear structure, the whole machine transmission shaft paper receiving wheelbase 210 mm can achieve most minimum 230 mm cardboard.
3. Note the optional: die cutting department options free version of the die-cutting
