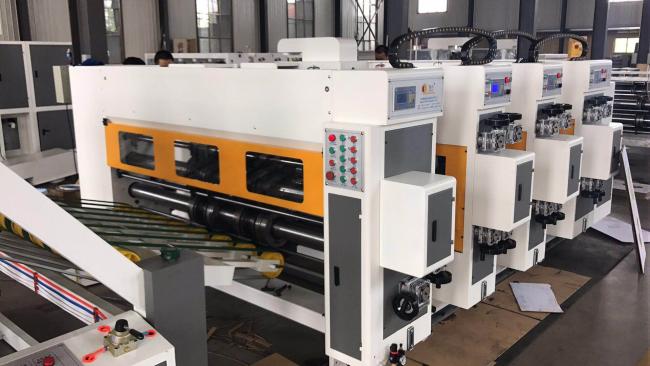

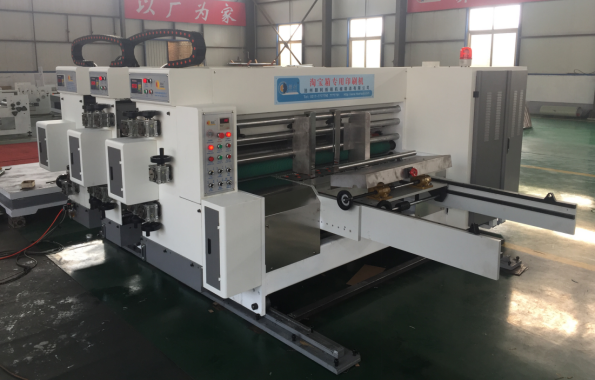

Automatic Four Color Flexo Printing Slotting Machine for Make Small Box
Automatic Four Color Flexo Printing Slotting Machine For Make Small Box
Specification
| Model | 2000mm | |
| Max machine speed | 60-120 pieces/min | |
| Max feeding size (L * W) | 1700mm*600mm | |
| Max printing size (L * W) | 1600mm*600mm | |
| Min feeding size (L * W) | 450mm*170mm | |
| Min slotting interval | Negative knife (A * B) | 150mm*50mm |
| Positive knife (A * B) | 80mm*80mm | |
|
Min box height (H) Min height of box (H) |
70mm | |
|
Outer size (L * W * H) Dimension (Length*Width*Height) |
3000mm*1700mm*1450mm | |
| Weight | 1700 KG | |
Introduction
The machine adopts vacuum adsorption auxiliary paperboard feeding system (air volume is adjustable), with the function which can complete the slotting, angle-cutting, slitting, creasing etc. of corrugated paperboard in one time. Slotting depth of this machine is with electric adjustment, and equipped with the scale reading. Slotting phase adjustment is to the planetary gear structure, adopting the electric computer type 360 degrees adjustment, and the upper and lower slotting knife disc and creasing wheels can synchronous moving to left or right, (note: some special tool to adjust the movement), it is easy to use and maintenance, compact, which is a professional in view of the small carton slotting forming equipment .
Main Structure And Function Characteristics
- Paper feeding roller adopts patterned roller, feeding roller pressure adopts eccentric wheel adjustment with left and right eccentric wheels, can adjust the pressure synchronously .
- Back kick feeding department adopts both sides and back baffles to fasten paperboard, to avoid the slotting error to make upper paperboard misplace when pushing paperboard, can fit to each kinds of paperboard with different quality , and sending paper stable and accurate.
- Slotting knife discs adopt full steel processed, slotting knives adopt sawtooth arc-shaped semicircle knives to slot and remove the waste, paperboard get into slitting roller after slotting, slitting knives cut both sides of the paperboard neatly. (note: pressing wheel and slitting knives are installed in same roller, convenient to adjust )
- Paperboard is sent out by six transmission shafts after slotting, corner-cutting, creasing and slitting . This machine power is equipped with the frequency speed controller (speed is adjustable freely), adopting JTE frequency converter.
- This machine adopts electric planetary gear phase adjustment to adjust the paperboard size, can adjust without stopping .
