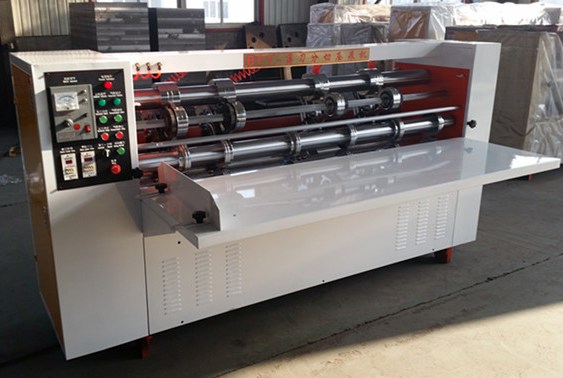

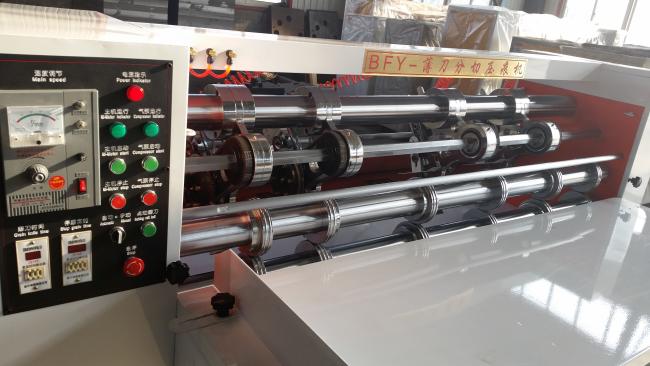

BFY Series 2000mm Thin Blade Slitter Scorer Machine For Cut Cardboard
BFY Series 2000mm Thin Blade Slitter Scorer Machine for cut cardboard
Functions and features:
1 It can cut quickly, the side is smoothly;
2 Thin knife slitting, thickness of the blade: 1mm;
3 the blade edge with grindstone in two methods: automatically or manually;
4 Sharp blade edge can slit the cardboard smoothly and neat.
5 Work process: Pre-pressing, slitting and creasing. Creasing line without crack.
6 The machine can be provided to corrugated paperboard production line.
Technical parameters:
Our service
1 The whole machine warranty period is one year.
2 Machine color according to customer demand.
3 Exceed the warranty period , if the machine has any question , customer can contact us anytime by mail or by phone, we will still do our best to provide you the best after-sale service.
| Parameter | Unit | Model |
| BFY-2000 | ||
| Feeding width | mm | 2000 |
| Max. speed | m/min | 150 |
| blade and scorer | 4 blade 6 scorer | |
| Min. Separate slitting width | mm | 200 |
| Min. creasing width | mm | 200 |
| External diameter of thin & round blade | mm | 260 |
| Thickness of thin & round blade | mm | 1 |
| Power | kw | 4 |
| Weight of machine | kg | 940kgs |
| Exterior dimension | mm | 2700x800x1500mm |
