ZL900X500 Automatic Partition Machine Assembler For Carboard 10kw Power

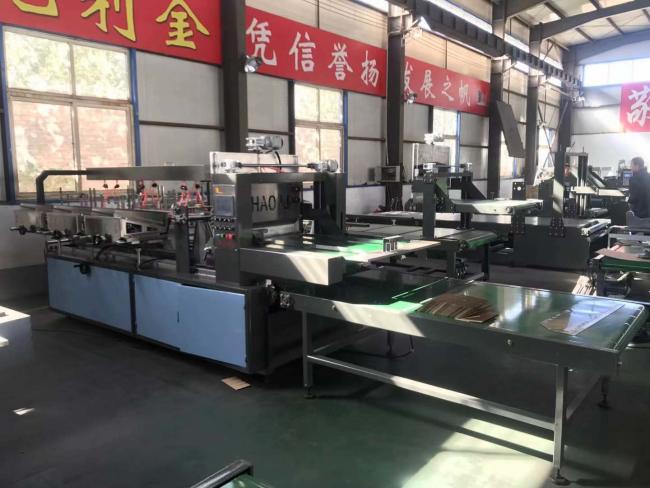

ZL900X500 automatic partition machine assembler for carboard
The partition assembler machine is beautiful and compact structure. Adopting electric control switch, pneumatic locking, PLC control and man-machine interface, It is easy to operate, running stable and high production efficiency ,clapboard assembler packaging . It is popular equipment of each carton company.
| Power supply | 380V / 50Hz | 3 phases - 4 lines |
| Power | 10 KW | Not including the air compressor |
| Host belt speed | 15-30m/min | |
| Clapboard combining form | 3 * (1~N) | In double working station |
| Longitudinal clapboard feeding track number | 6 | |
| Horizontal clapboard feeding track number | 1-12 | |
| Clapboard size | Length L=120-500mm | Clapboard thickness 1.5-7mm |
| Height H=70-300mm | ||
|
Width W=120-450mm (double station) |
Width W=120-900mm (single station) |
|
| Lattice spacing C=50~150mm | ||
| Lattice spacing D=35~150mm | ||
| Working speed | 30~60 groups / min | Working speed is connected with clapboard size and clapboard combining form . |
|
Note : when the width of clapboard is greater than 450mm , the machine just can work in single station . Air compressor or air compression station requirement : 6kgf/cm2 . For the special type of clapboard , we can customize the machine as client’s wish . |
||
Electric Elements Configuration :
| No. | Electric Part | Brand | Origin |
| 1 | PLC | Delta | Taiwan |
| 2 | Servo motor | Delta | Taiwan |
| 3 | Touching screen | Delta | Taiwan |
| 4 | Electric elements | Schneider | France |
| 5 | Pneumatic element | ROKO | Taiwan |
| 6 | Reducer | WANXIN | China |
| 7 | Bearing | HRB | China |
| 8 | Transmission synchronous belt | Farman | Zhejiang,China |
