Automatic Printing Slotting Die Cutting Machine For Making Cartons 900x2200 Model

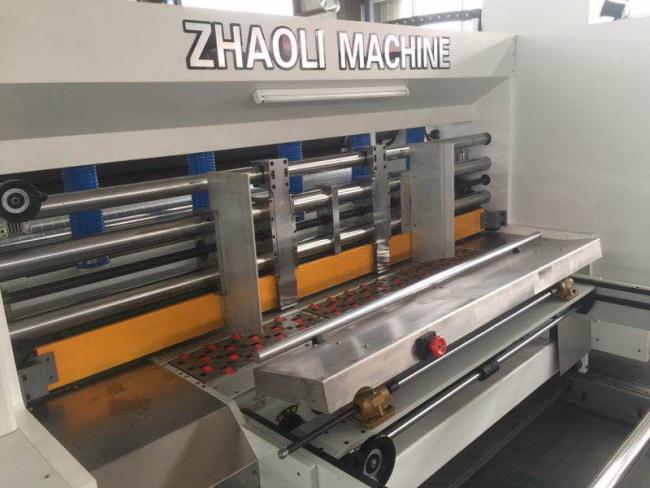

900x2200 automatic printing slotting die cutting machine for making cartons
Introduction
2Straight gear drive.The gears are after high frequency quenching and grinding
3All the rollers are plated with chromium to encrease their hardness.
4Spray circulated oil lubrication.
5Return to zero and adjust printing plate automatically.
6Module-designed. Multicolor printing sections can be combined as your requests.
7The side baffle of feeder and slotter are all adjusted electrically.
8PLC, touch screen and frequency-variable controller are adopt,accurate and reliable.
Note:
1. it has memory function, memory different orders.
2. Transfer between units is by roller
3. Ink pumps are activated on lcd.
4. All electric parts are Delta(Taiwan) and CHNT(Zhejiang China)
| no | item | size | notes |
| 1 | Upper feeding roll (rubber) diameter size | Dia.135 mm | Solid steel |
| 2 | Lower feeding roller (embossing) diameter size | Dia. 156 mm | Embossed, hard chrome-plated |
| 3 | No. of rows of feeding rollers ………. 3 or 4 | 4 | |
| 4 | Left and right side baffles ….. .motorized or manual | motorized | |
| 5 | Blowing fan power ( KW) | 11kw | |
| 6 | Main motor power, | 22kw | |
| 7 | Servo motor ………….. y/n | y | |
| 8 | Max. feeding Sheet size L x W | 900x2200mm | |
| 9 | Max printing sheet size | 900x2000mm | |
| 10 | Min feeding sheet size | 360x560mm | |
| 11 | Skip feeding size | 900x2200mm | |
| 12 | Max. sheet thickness | 10mm | |
| 13 | Min. sheet thickness | 3mm | |
| 14 | Cleaning brush and dust removal blower | n | |
| 15 | Machine side walls thickness | 50mm. | |
| 16 | |||
| 17 |
