Fully Automatic Carton Box Making Machine For Corrugated Sheet / Case Maker
Fully Automatic Carton Box Making Machine For Corrugated Sheet / Case Maker
Description:

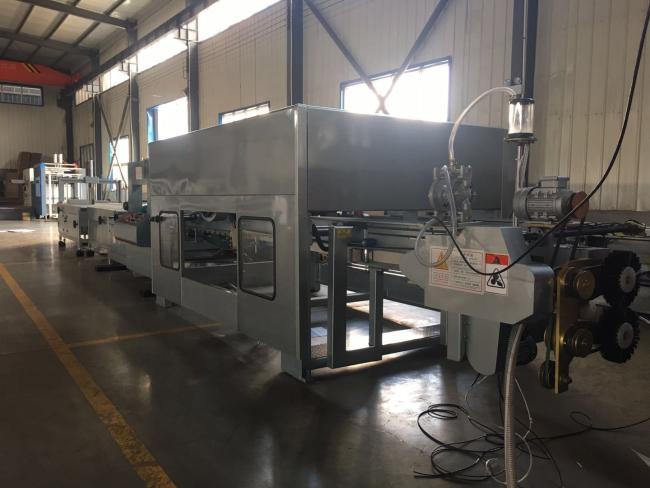

This carton box making machine includes printing slotting machine / die cutting machine, folding gluing unit and bundling unit. It is electric adjusted and easy to operate, save labor for you.The feeding is lead edge vacuum suction feeder, independent unit. For printing unit, we can make at most 5 colors, the anilox roller, rubber roller are both good material, also we can provide ceramic roller and doctor blade for high printing quality. It is a good machine for making boxes.
Main specification:
| model | 2200 |
| diameter of roller | 410 |
| max feeding size | 1200x2200mm |
| min feeding size | 350x600mm |
| max printing size | 1200x2000mm |
| max speed | 150 pieces/min |
| printing plate thickness | 7.2mm |
| This is sample, we often make size 2200, 2400, 2600, 2800 | |
Features:
1.The printing unit is our high level type printer, it is fully automatic, you can adjust on the touch screen, it is very convenient. It has skip feeding function and hanging printing plate.
2.To adjust the slotting distance, just press the number on the screen, then it is adjusted automatically, the phase is 360 degree electric adjusted.
3.For die cutting unit, we choose famous brand for anvil cover, it is durable.
4.In gluing section, the glue is provided automatically, glue circulation, it is a way of saving time and glue.
5.Cartons are piled up in counting unit, you can choose how many cartons a bundle.
It is a good line for making carton box.
