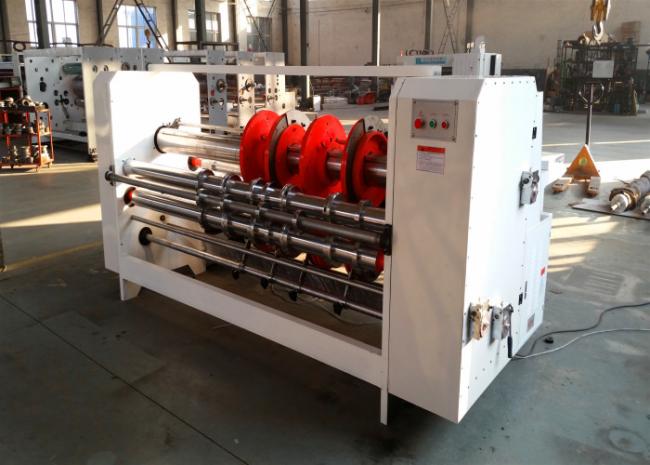

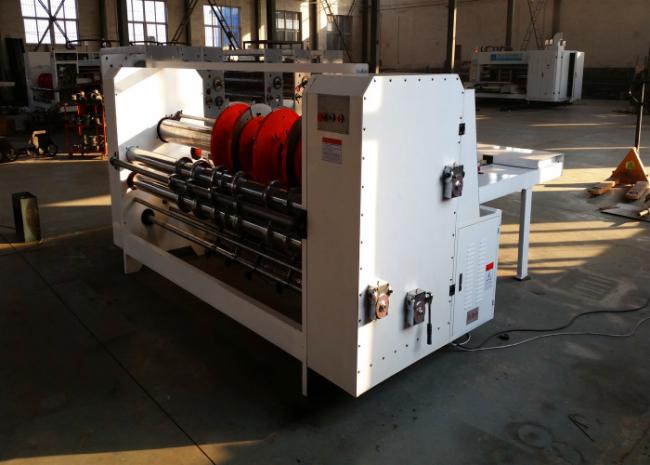

Semi Automatic Corrugated Board Rotary Slotter Machine / Carton Box Rotary Slotter Machine
Semi Automatic Corrugated Board Rotary Slotter Machine / Carton Box Rotary Slotter Machine
The description of machine
1 FYQ series machine can finish slotting, scorer and angle cutting on corrugated paperboard at one time.

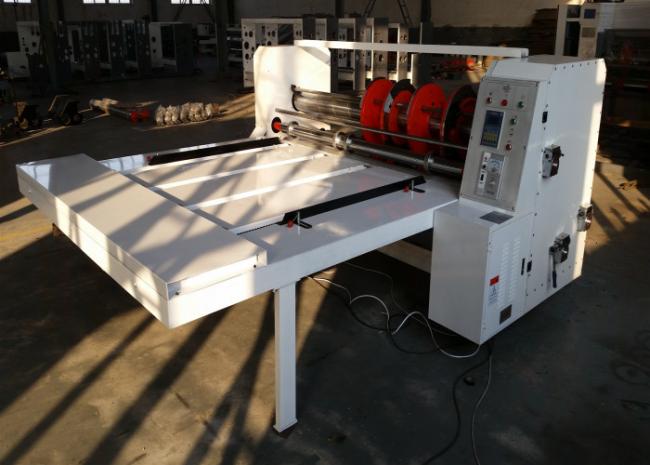

2 Its main characteristic is single sheet manual feeding by chain, even the frizzy paperboard acceptable.

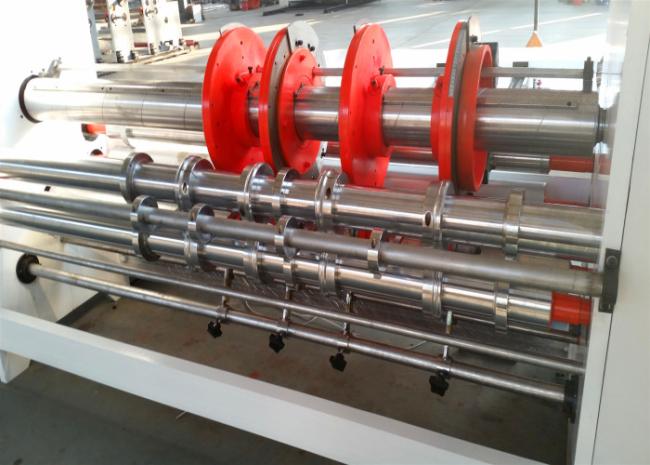

3 All the transmission axle and roller are made by the high-quality steel; plated with hard chrome and grind surface.
4 Axle treated by rigidity chroming electroplate, and nicety grinding, firmness durable. All the machine bearing was used Harbin sealed ball bearing, which can guarantee the machine high speed running steadily.
The manual adjustment .

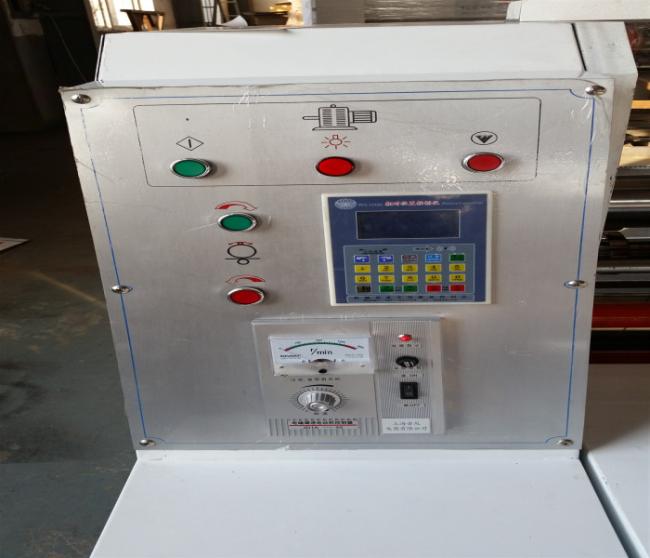

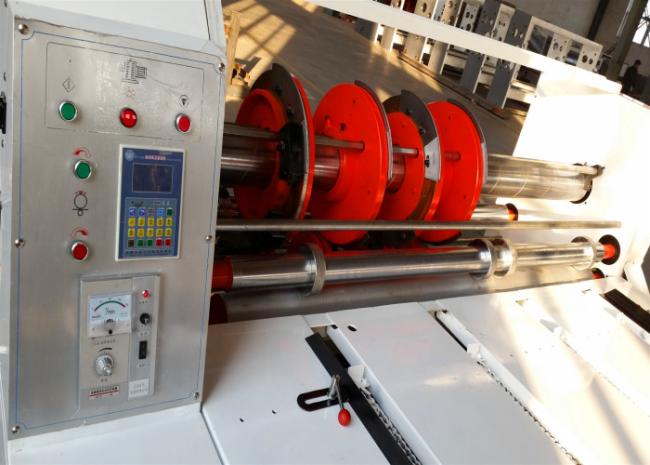

Slitting corner and slotting knife seat can be made by 360° electric degree forward, reverse and around direction adjustment. Equipped with hand crank, very convenient and lock tightly, slotting accurately, this adjustment function design tightly, durable in use.
The technological parameter
| Technological Parameters : | |||
| Model | FYQ 1200X2200 | FYQ 1400X2400 | FYQ 1600x2500 |
| Max feeding board size | 1200X2200mm | 1400X2500mm | 1600x2500mm |
| Min feeding board size | 350x600mm | 350x700mm | 400x700mm |
| Depth of corner cutting | 300mm | 300mm | 300mm |
| Max speed | 60 pieces/min | 60 pieces/min | 50 pieces/min |
| Transmission | Chain feeding | Chain feeding | Chain feeding |
| Machine weight | 3000kg | 3300kg | 3600kg |
| Slotting width | 7.5mm | 7.5mm | 7.5mm |
The corrugated carton board rotary slotter machine
12 months warranty
24 hours online service
Providing free quick-wear parts
Engineers available to service overseas if necessary
Product certificated by CE
Company information
Cangzhou Zhaoli Carton Machinery Co Ltd was founded in 2015 , Our company has “Zhaoli First Machine Producing Factory, Zhaoli Second Machine Assembly Factory and “Cangzhou Zhaoli Import & Export Trade Co LTD.
Our company is in adhering to the Quality is the first, Credibility is the foundation as business purposes, fulfilling customers needs is always our only goal. To provide customers the products with excellent quality, technical expertise, excellent performance is our working direction. Our company is willing to sincerely cooperate with domestic and abroad friends and strive to develop, share our achievements and work together for the beautiful future of carton package!
