Semi Automatic Flute Corrugated Board Laminating Machine / Semi Automatic Servo Cover Machine
Semi Automatic Flute Corrugated Board Laminating Machine / Semi Automatic Servo Cover Machine
The Functions and Features
1. Independent research and development, adopt advance clutch drive.
2. Adopt PLC control system, working is more precision and stable, improved the speed, circuit faults can automatically alarm.
3. This machine adopts taiwan servo motor, instead of the break, clutch and electric eye, realized PLC & servo single control independently
4. Corrugated cardboard auto feeding, as fast as the surface paper’s working.
5. The machine operation is stable, surface paper with corrugated paper joint very accurate. The corrugated paper never pull ahead, surface paper’s location is easy adjust.
6. Automatic gluing, and the glue can be used circulatory, avoid glue waste.
7. Roller design scientifically, avoid glue fly out when the speed is high.
8. Pressure rollers adopt unilateral adjustment, convenient and fast.
9. Rocker controls wash roller’s fluctuation, easy cleaning.
Counter designs scientifically, easy recording the amount you have been worked.
The technological parameter
| Main parameter | |||
| Model | 1300 | 1500 | 1600 |
| Max. working size | 1300x1250mm | 1500x1250mm | 1600X1250mm |
| Min. Working size | 360x360mm | 360x360mm | 360x360mm |
| Machinery speed | 0-100pcs/min | 0-100pcs/min | 90pcs/min |
| Power | 6kw | 6.5kw | 6.5kw |
| Laminating precision | ±1mm | ±1mm | ±1mm |
| Packaging size | 8.8X1.95X1.7m | 8.8X2.15X1.7m | 9X2.45X1.7m |
| Weight | 3t | 3.5t | 4t |
The spare parts List
| Main Equipment | |
| Spare parts | Origin |
| Main frame Motor | Shanghai Lida |
| Vortex Pump | Shanghai Hengli |
| Servo Driver | INVT |
| Contractor | SCHNEIDER(Germany) |
| PLC | OMRNO/Delta |
| Liquid Level Switch | .CKC/Delta |
| Photoelectric Switch | SANCH/Delta |
| The host invert | OMRON/Delta |
| Pressure platform invert | OMRON/Delta |
| Pressure platform motor | Taiwan Taibang |
| Transfer press belt | Italy(joint venture) |
| Synchronous wheel, Synchronous belt | Ningbo Beidi (joint venture) |
| The host chain, sprocket | CHOHO (Sino-Japanese joint venture) |
| Bearing | WTJB, HRB,LYC |

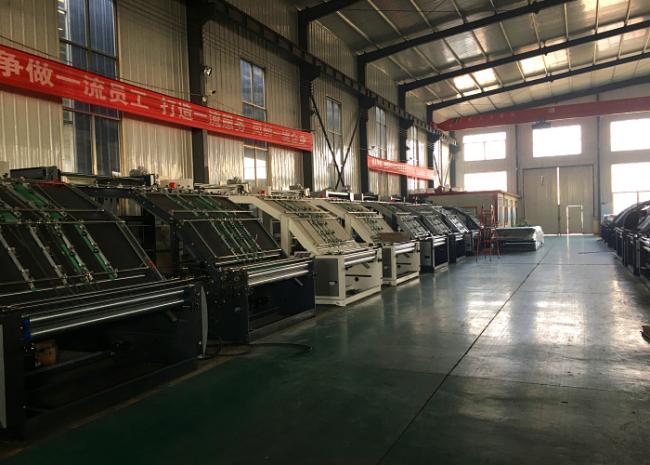

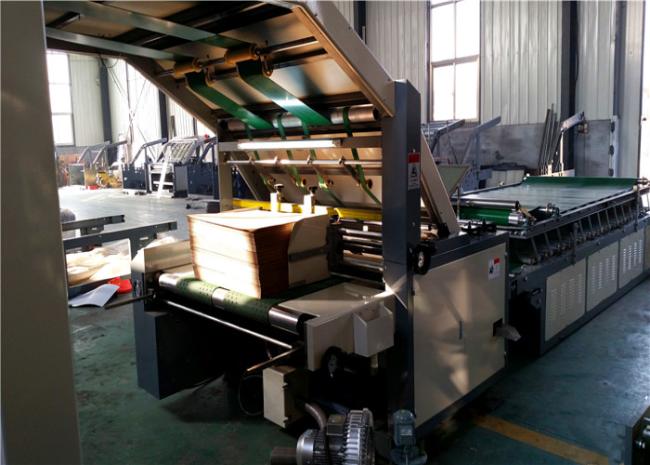

The Flute lamination machine real pictures
