Gray Color Automatic Carton Box Printing Slotting Die Cutting Machine / Automatic Die Cutting Machine
Gray Color Automatic Carton Box Printing Slotting Die Cutting Machine / Automatic Die Cutting Machine
The Corrugated box Printing Slotting Features
1 Having printing and slotting memory, auto zero adjustment and auto reset.
2 Designed According to the high request and the reliable function,the operation of the machine is humanization,can accomplish the setting,revision, implement, replacing and memories function in a shot time,and display with a exact data.
3 All the drive rollers adopted high quality alloy steel materials,hard chromium plating and the surface be treated by lapping finish.
4 The drive gears adopt high quality alloy steel,after heat treatment and lapping finish. 5 The gears adopt shower type circular lubricating
6 The main drive roller adopt keyless connect,decrease the connection gap, guarantee the printing presicion.
7 Lubricate oil automatic balance device,keep the equal oil level equal in each unit.
8 All the electrical and electronic components and parts,PLC, Computer ,Inverter are Siemens Brand from Germany.
9 Customer can chose use steel anilox roller or ceramic roller,the lines of the anilox roller ac so can be chosed accord the customer use
10 The side baffle plate of the feeding department and slotting department are adjust by electricall
The Carton Box Printing Slotting Main Parameter
| Item | 2400 model type |
| Wallboard medial width | 50 mm |
| The diameter of the anilox | 420 mm |
| Max feeding paperboard size | 1600 mm*2400 mm |
| Max effective printing size | 1600 mm*2200 mm |
| Min process paperboard size | 420 mm*700 mm |
| Thickness of the printing plank | 7.2 mm |
| Max speed | 150 pieces/min |
| Economical speed | 100-120 pieces/min |
| Precision of the printing | ±0.75 mm |
| Precision of the slotting | ±1 mm |
| Max depth of slotting | 300 mm |
| Min grooving space | 300mm*100mm*300mm*100mm |
| Printing rolling axle circle-oriented regulating | 360 degree revolving |
| Printing rolling axle-oriented regulating | +/-10mm |
| Power | 22 kw |
| Power supply | as customer’s wish |

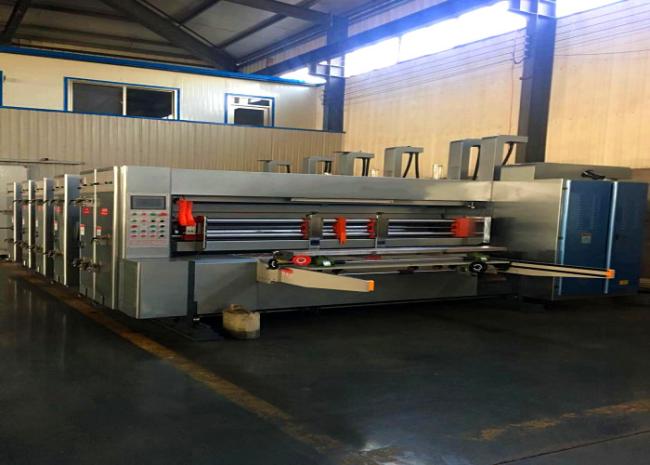

The Automatic Printing Slotting Real Photos
