Alloy Steel Corrugated Paperboard Flexo Printer Slotter Machine With Folder And Gluer Bundling Machine
Alloy Steel Corrugated Paperboard Flexo Printing Slotting Machine / With Folder And Gluer Bundling Machine
The introduction of machine
1 All the electrical appliances adopts domestic and abroad famous brands . ( or according to customers requests ) .
2 The machine slotting unit is automatically by Computer PLC .
3 This is used interlocked system , it can be separated and combained by electrical .
4 Adopts shower oil lubration .
5 Back to zero automatically .
6 The machine has storages function ( record the all orders and counter quatity )
7 Free to choose 1- 5 colors
8 Free to combine the slotter unit die cutting unit , folder and gluer unit , bundling unit .
1 The feeding unit
(1) Separation and combination
(2) Front edge sun roller feeding system
(3) Dust clearance device
(4) Paper Feeding roller
(5) Automatic zero reset device
2 The printing unit
(1) the printing roller
(2) Printing Pressure roller
(3) paperboard feeding upper roller and down roller
(4) steel anilox roller
(5) ceramic roller ( optional )
(6) rubber roller
(7) Phase adjust system
(8) Water ink circulating
(9) Printing phase fixing device
3 The slotting unit
(1) Crease press device
(2) Slotting knife block translation adjusting system
(3) Slotting phase adjusting system
(4) Box height adjusting system
4 The Die cutting unit
(1) Die cutter roller (down roller
(2)Rubber roller
(3) Phase adjustment
The main Parameter of machine
| Item | 2200 model type |
| Wallboard medial width | 50 mm |
| The diameter of the anilox | 300 mm |
| Max feeding paperboard size | 900 mm*2200 mm |
| Max effective printing size | 900 mm*2000 mm |
| Min process paperboard size | 420 mm*700 mm |
| Thickness of the printing plate | 7.2 mm |
| Max speed | 150 pieces/min |
| Economical speed | 120 pieces/min |
| Precision of the printing | ±0.75 mm |
| Precision of the slotting | ±1 mm |
| Max depth of slotting | 300 mm |
| Min grooving space | 300mm*100mm*300mm*100mm |
| Printing rolling axle circle-oriented regulating | 360 degree revolving |
| Printing rolling axle-oriented regulating | +/-10mm |
| Power | 22 kw |
| Power supply | as customer’s wish |

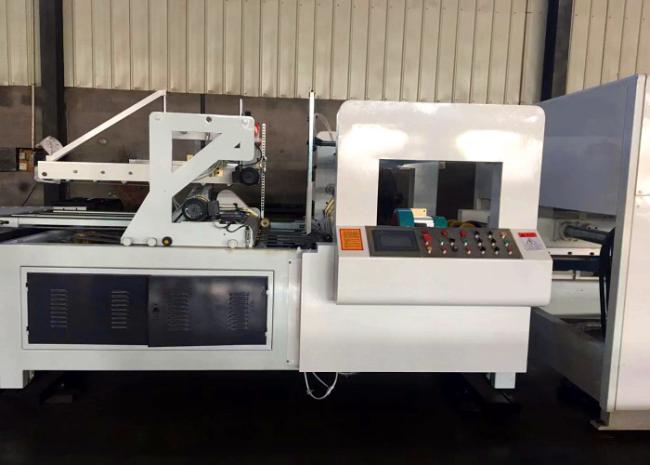

The machine real photos ( folder gluer and bundling units )
Contact with me , to get more details infromation !
